Description

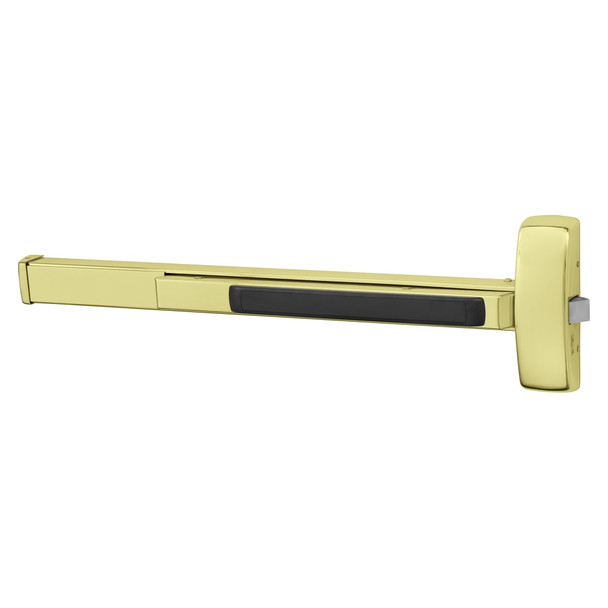

The Sargent 80 Series rim exit device is a heavy-duty panic hardware solution for commercial facilities requiring Grade 1 security and durability. Ideal for wood or metal doors 1-3/4" thick, this single-point latching device handles single and double door applications with quiet operation, minimal maintenance, and UL Fire and Panic listing for peace of mind in high-traffic environments.
The 125556-8863J RHR 3 fits J-Rail doors 37-42" wide with no cutting required at 42". Sargent's modular design exceeds ANSI A156.3 Grade 1 standards and supports delayed egress, alarmed exit, and electric latch retraction options. Contact our authorized dealer team at 1-877-207-6067 or sales@edlocks.com for compatibility verification, installation guidance, and expert support.
Specifications
- Configuration: Rim, RHR (Right Hand Reverse)
- Door Thickness: 1-3/4" (44mm); over 1-3/4" specify thickness and order with 31-prefix
- Rail Type: J Rail
- Door Width: 37-42" (94-107cm); no cutting at 42"
- Door Types: Wood or metal
- Latching: Single-point
- Standards: ANSI A156.3 Grade 1, UL Fire and Panic listed
- Features: Quiet operation, maintenance-free, supports single and double door applications with mullions, optional delayed egress, alarmed exit, and electric latch retraction
