Description

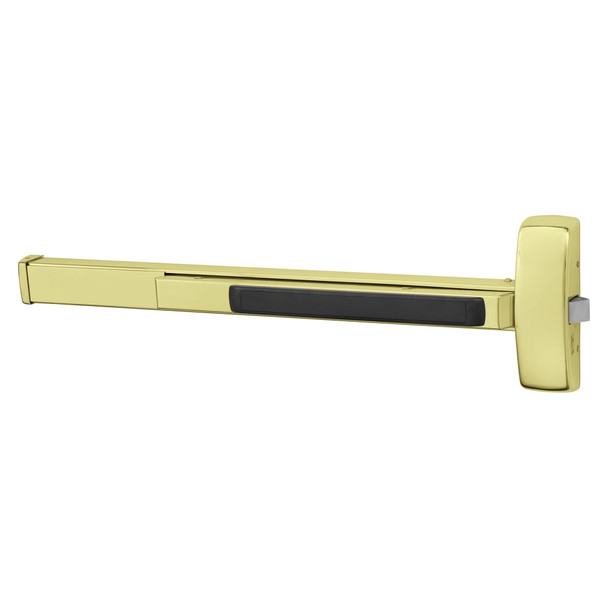

The Sargent 80 Series rim exit device is a Grade 1 certified panic hardware solution built for wood and metal doors in commercial facilities requiring durable, code-compliant egress. Single-point latching design works on single and double doors with mullions, delivering quiet operation and reliable security that exceeds ANSI/BHMA standards.
Installation fits 1 3/4 inch thick doors; specify thickness for thicker applications. Available in four rail options (E, F, J, G) covering door widths 24 to 48 inches with no cutting required at standard widths. Contact our authorized dealer experts at sales@edlocks.com or 1-877-207-6067 for compatibility verification, keying guidance, and optional delayed egress or electric latch retraction configurations.
Specifications
- Model: 1256-8810G3
- Series: Sargent 80
- Device Type: Rim Exit Device
- Configuration: Single point latching
- Door Thickness: 1 3/4 inch (44mm) standard
- Rail Options: E (24-32 inch), F (33-36 inch), J (37-42 inch), G (43-48 inch)
- Door Types: Wood or metal
- Applications: Single and double doors with mullions
- Certifications: ANSI A156.3 Grade 1, UL Fire and Panic listed
- Construction: Modular with minimal moving parts
- Features: Quiet operation, maintenance-free
