Description

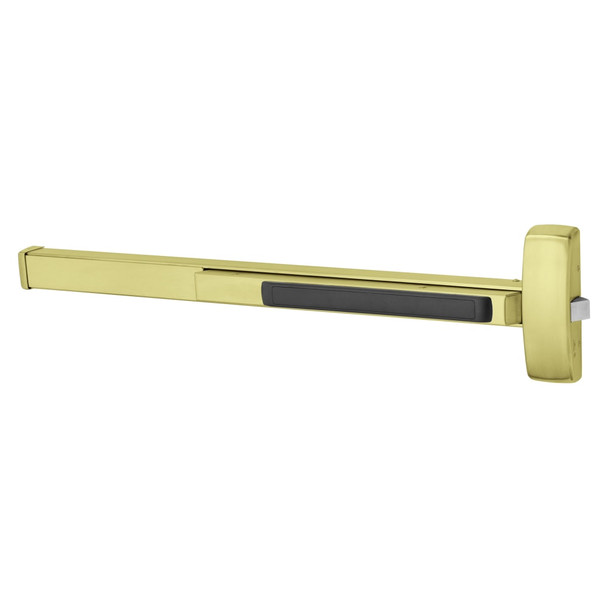

The Sargent 80 Series rim exit device is a Grade 1 panic hardware solution for wood and metal doors in commercial and institutional buildings. This single-point latching device provides durable security for single and double door applications, featuring quiet operation, minimal maintenance, and ANSI/BHMA Grade 1 strength that exceeds standard cycle requirements for the life of the building.
This rim device fits wood or metal doors 1-3/4 inches thick and accommodates door widths from 24 to 48 inches with multiple rail options (E, F, J, G) requiring no cutting for standard sizes. UL Fire and Panic listed with options for delayed egress, alarmed exit, and electric latch retraction. Contact an authorized E.D. Locks dealer at sales@edlocks.com or 1-877-207-6067 for expert compatibility guidance and installation support.
Specifications
- Brand: Sargent
- Model: 1256-8846G 4
- Type: Rim Exit Device, Single Point Latch
- Door Thickness: 1-3/4 inch (44mm); over 1-3/4 inch specify thickness with 31- prefix
- Door Width Range: 24-48 inches (61-122cm)
- Rail Options: E (24-32 inches), F (33-36 inches), J (37-42 inches), G (43-48 inches)
- Door Types: Wood or Metal
- Applications: Single Door and Double Door with Mullions
- Standard: ANSI A156.3 Grade 1
- Certifications: UL Fire and Panic Listed
- Features: Single point latching, quiet operation, modular construction, maintenance-free
- Optional Features: Delayed egress, alarmed exit, electric latch retraction
