Description

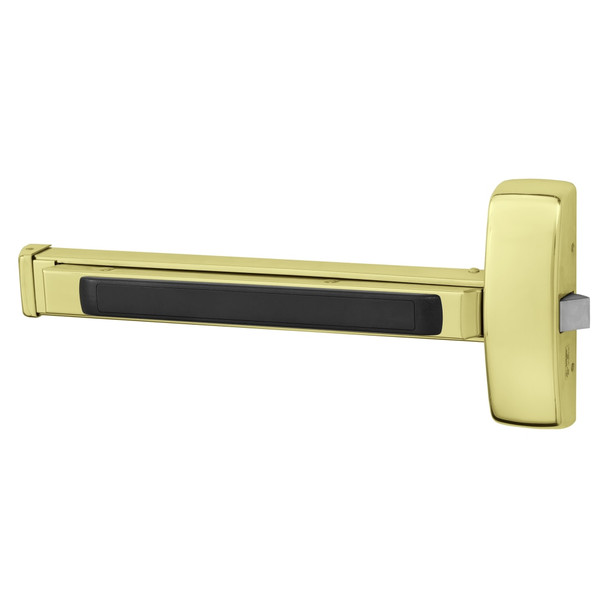

The Sargent 80 Series Rim Exit Device is a Grade 1 panic hardware solution for wood and metal doors in commercial facilities requiring maximum durability and security. Ideal for single and double door applications, this rim-mounted device features single-point latching, quiet operation, and modular construction with minimal maintenance needs throughout the building's life.
Compatible with 1 3/4" and thicker doors in widths from 24" to 48" using E, F, J, or G rail configurations. UL Fire and Panic listed and exceeds ANSI A156.3 Grade 1 standards. For sizing guidance, keying options, or custom applications like delayed egress or electric latch retraction, contact our authorized dealer experts at sales@edlocks.com or 1-877-207-6067.
Specifications
- Model: 1256-8813E 3
- Type: Rim Exit Device
- Door Thickness: 1 3/4" (44mm); specify thickness for doors over 1 3/4"
- Door Width Range: 24" to 48" (61cm to 122cm) depending on rail type
- Rail Options: E (24-32"), F (33-36"), J (37-42"), G (43-48")
- Latch: Single-point
- Applications: Single and double doors with mullions
- Certifications: ANSI A156.3 Grade 1, UL Fire and Panic Listed
- Construction: Modular with few moving parts
