Description

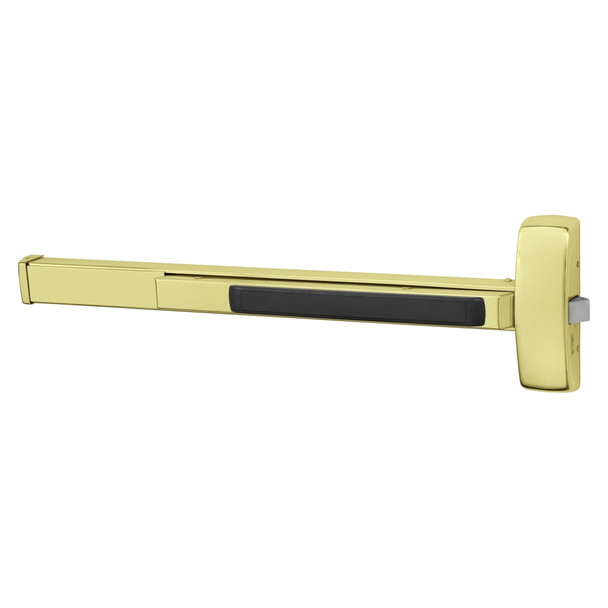

The Sargent 80 Series rim exit device is a Grade 1 panic hardware solution designed for commercial facilities requiring durable, maintenance-free security. Ideal for wood or metal doors 1-3/4 inches thick, this single-point latching device provides quiet operation and exceeds ANSI/BHMA standards for cycle and strength, making it suitable for single and double door applications.
Available in multiple rail configurations (E, F, J, G) to fit door widths from 24 to 48 inches, the 80 Series features modular construction with optional delayed egress, alarmed exit, and electric latch retraction capabilities. Contact E.D. Locks & Security at sales@edlocks.com or 1-877-207-6067 for expert guidance on sizing, installation, and keying options as an authorized dealer.
Specifications
- Door Thickness: 1-3/4 inches (44mm); specify thickness for doors over 1-3/4 inches with 31- prefix
- E Rail: 24-32 inches (61-81cm); no cutting required for 32 inch doors
- F Rail: 33-36 inches (84-91cm); no cutting required for 36 inch doors
- J Rail: 37-42 inches (94-107cm); no cutting required for 42 inch doors
- G Rail: 43-48 inches (110-122cm); no cutting required for 48 inch doors
- Single point rim latching device
- ANSI A156.3 Grade 1 certified
- UL Fire and Panic listed
- Compatible with wood or metal doors
