Description

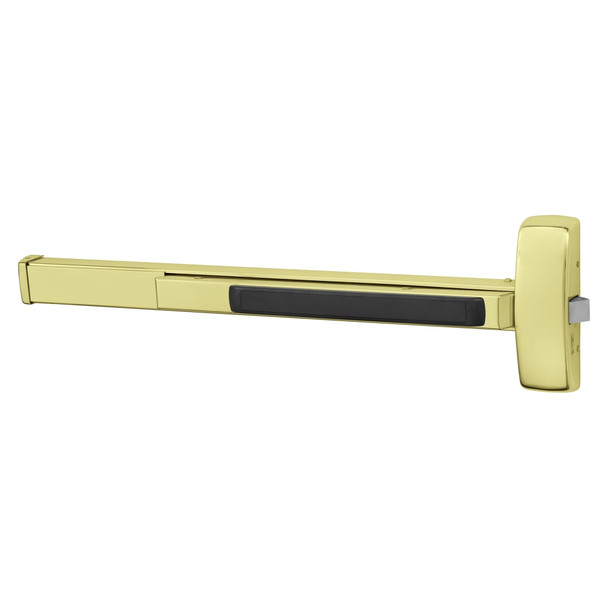

The Sargent 80 Series rim exit device is a Grade 1 panic hardware solution for wood and metal doors in commercial and institutional buildings. This single-point latching device handles single and double-door applications with exceptional durability, exceeding ANSI/BHMA Grade 1 cycle and strength requirements. Maintenance-free modular construction with few moving parts ensures reliable performance throughout the building's life.
Compatible with 1-3/4 inch thick doors and four rail options (E, F, J, G) covering 24 to 48 inch widths. UL Fire and Panic listed for safety-critical environments. Options include delayed egress, alarmed exit, and electric latch retraction. Contact our team at sales@edlocks.com or 1-877-207-6067 for expert sizing, keying, and installation guidance as an authorized Sargent dealer.
Specifications
- Model: 1256-8846G 3
- Brand: Sargent
- Type: Rim exit device, single-point latching
- Door Compatibility: Wood or metal, 1-3/4 inch (44mm) thick; over 1-3/4 inch specify thickness and order with 31- prefix
- E Rail: 24 to 32 inches (61 to 81cm); no cutting required for 32 inch door
- F Rail: 33 to 36 inches (84 to 91cm); no cutting required for 36 inch door
- J Rail: 37 to 42 inches (94 to 107cm); no cutting required for 42 inch door
- G Rail: 43 to 48 inches (110 to 122cm); no cutting required for 48 inch door
- Applications: Single door and double door with mullions
- Certifications: ANSI A156.3 Grade 1, UL Fire and Panic listed
- Features: Quiet operation, modular construction, maintenance-free
- Options: Delayed egress, alarmed exit, electric latch retraction
