Description

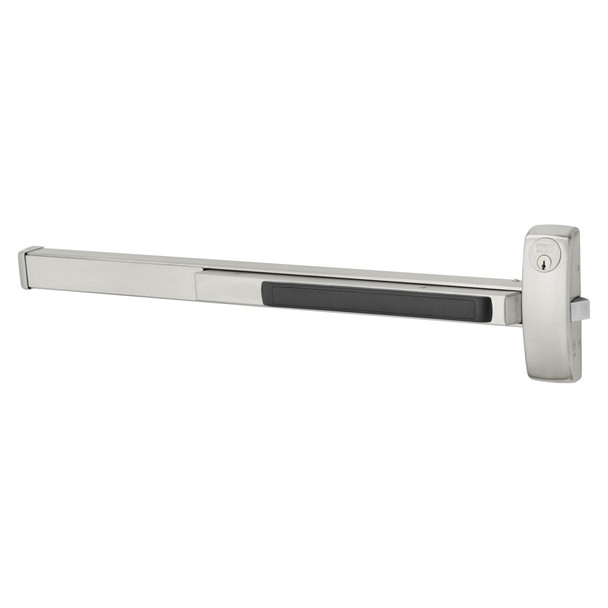

The Sargent 1256-8816F is a Grade 1 rim exit device designed for wood and metal doors requiring reliable emergency egress and security. Ideal for commercial facilities, schools, hospitals, and multi-tenant buildings, this single-point latching device provides durable protection that exceeds ANSI/BHMA standards with minimal maintenance and unsurpassed security performance.
This right-hand reverse (RHR) model fits doors 24-32 inches wide with no cutting required on 32-inch doors. Compatible with 1-3/4-inch thick doors; thicker doors available with 31-prefix ordering. As an authorized Sargent dealer, E.D. Locks provides expert guidance on configuration, installation, and keying. Contact our sales team at sales@edlocks.com or 1-877-207-6067 for compatibility questions or to explore alarmed, delayed egress, and electric latch retraction options.
Specifications
- Brand: Sargent
- Model: 1256-8816F RHR 32D
- Type: Rim exit device, single-point latching
- Configuration: Right-hand reverse (RHR)
- Door thickness: 1-3/4 inches (44mm)
- Door width range: 24-32 inches (61-81cm); no cutting required for 32-inch doors
- Door material: Wood or metal
- Standards: ANSI A156.3 Grade 1, UL Fire and Panic listed
- Features: Quiet operation, suitable for single and double door applications with mullions
- Construction: Modular with few moving parts
