Description

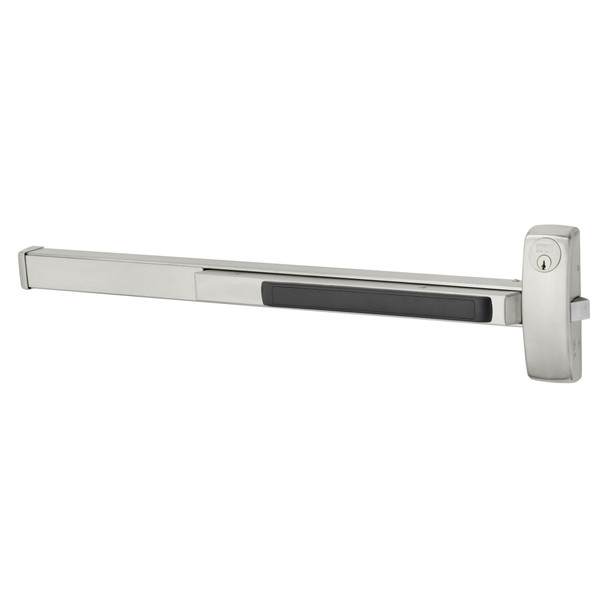

The Sargent 80 Series 5556-8816F is a heavy-duty rim exit device engineered for commercial facilities demanding long-term security and reliability. Ideal for wood or metal doors 1 3/4" thick, this single-point latching device handles both single and double door applications with mullions, delivering quiet operation and Grade 1 strength that exceeds ANSI/BHMA standards.
The F rail configuration fits doors 33" to 36" wide with no cutting required for 36" doors. Modular construction with minimal moving parts ensures maintenance-free operation. UL Fire and Panic listed for code compliance. For expert sizing, keying assistance, or custom configurations like delayed egress or alarmed options, contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067.
Specifications
- Model: 5556-8816F RHR 32D
- Brand: Sargent
- Series: 80 Series
- Type: Rim Exit Device, Right Hand Reverse
- Door Thickness: 1 3/4" (44mm)
- Rail: F Rail
- Door Width: 33" to 36" (84cm to 91cm)
- No cutting required for 36" doors
- Latching: Single point
- Door Type: Wood or metal
- Applications: Single door and double door with mullions
- Certification: ANSI A156.3 Grade 1, UL Fire and Panic listed
- Features: Modular construction, maintenance-free, quiet operation
- Optional: Delayed egress, alarmed exit, electric latch retraction
