Description

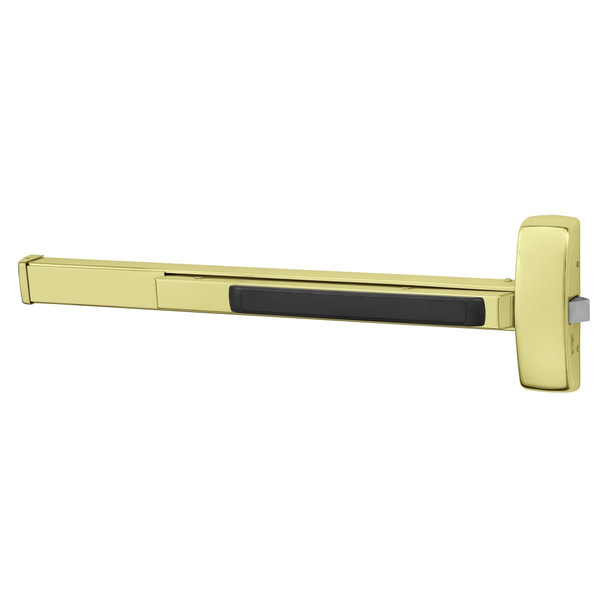

The Sargent 80 Series rim exit device delivers Grade 1 security and durability for wood or metal doors up to 48 inches wide. Designed for facilities requiring reliable panic hardware, this single-point latching device handles single and double door applications with minimal maintenance thanks to modular construction and few moving parts.
Installation requires doors 1 3/4 inches thick (specify thickness for thicker doors with 31-prefix order). Choose your rail size: E (24-32 inches), F (33-36 inches), J (37-42 inches), or G (43-48 inches). As an authorized Sargent dealer, E.D. Locks provides expert installation guidance and access to optional delayed egress, alarmed, and electric latch retraction configurations. Contact sales@edlocks.com or call 1-877-207-6067 for technical support.
Specifications
- ANSI A156.3 Grade 1 certified
- UL Fire and Panic listed
- Compatible with wood or metal doors, 1 3/4 inch thick
- Single door and double door applications with mullions
- E Rail: 24 to 32 inches (no cut at 32 inch)
- F Rail: 33 to 36 inches (no cut at 36 inch)
- J Rail: 37 to 42 inches (no cut at 42 inch)
- G Rail: 43 to 48 inches (no cut at 48 inch)
- Single point rim latching
- Quiet operation
