Description

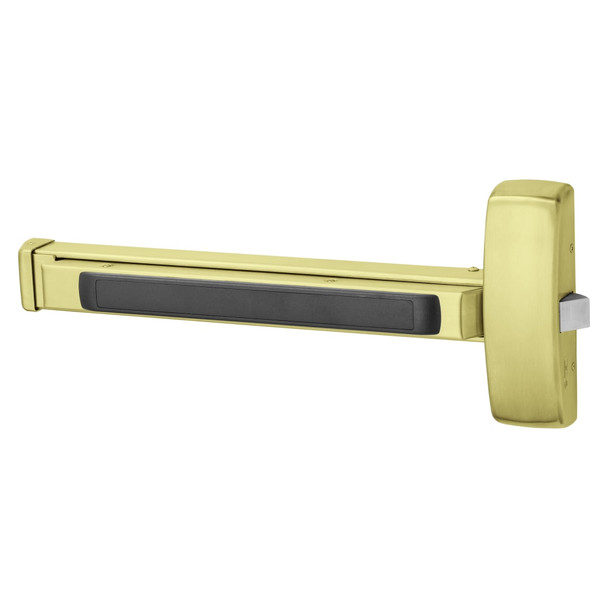

The Sargent 80 Series rim exit device delivers Grade 1 security and durability for wood or metal doors in commercial and institutional buildings. This single-point latching device suits single and double door applications, offering quiet operation, minimal maintenance, and compliance with ANSI/BHMA Grade 1 standards for cycle and strength.
Compatible with 1 3/4" thick doors (custom sizing available for thicker doors), this rim device fits E, F, J, and G rail configurations for door widths from 24" to 48". As an authorized Sargent dealer, E.D. Locks provides expert guidance on rail selection, installation, and optional features like delayed egress or electric latch retraction. Contact sales@edlocks.com or 1-877-207-6067 for technical support.
Specifications
- Model: 1256-8873E 4
- Brand: Sargent
- Device Type: Rim exit device
- Door Compatibility: Wood or metal, 1 3/4" (44mm) thick
- Rail Options: E (24"-32"), F (33"-36"), J (37"-42"), G (43"-48")
- Latching: Single-point
- Applications: Single and double doors with mullions
- Standards: ANSI A156.3 Grade 1, UL Fire and Panic listed
- Features: Quiet operation, modular construction, maintenance-free
