Description

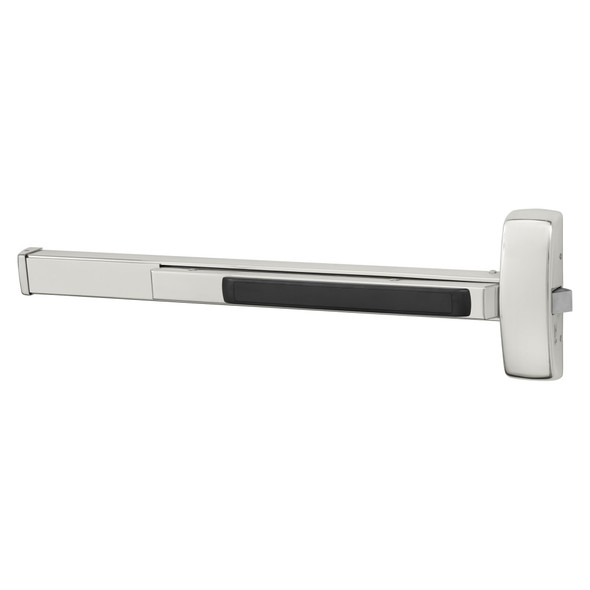

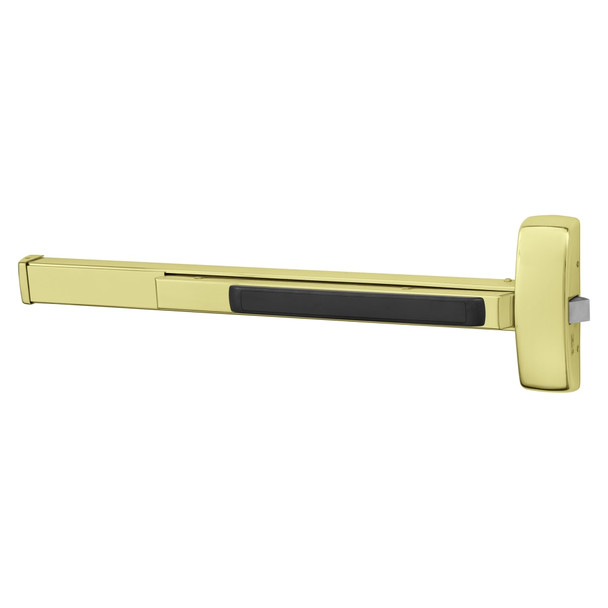

The Sargent 80 Series rim exit device delivers Grade 1 security and durability for wood or metal doors 1-3/4" thick. Designed for facilities requiring strong, maintenance-free egress hardware, this single-point latching device handles single and double door applications with quiet, reliable operation that exceeds ANSI/BHMA standards.
Available in multiple rail configurations (E, F, J, G) to fit door widths 24" to 48" with no cutting required at standard sizes. UL Fire and Panic listed for compliance. Optional delayed egress, alarmed exit, and electric latch retraction features support unique applications. Contact our experts at sales@edlocks.com or 1-877-207-6067 for sizing guidance and authorized dealer support.
Specifications
- Door Types: Wood or metal 1-3/4" (44mm) thick; thicker doors require 31- prefix ordering
- E Rail: 24" to 32" (61cm to 81cm)
- F Rail: 33" to 36" (84cm to 91cm)
- J Rail: 37" to 42" (94cm to 107cm)
- G Rail: 43" to 48" (110cm to 122cm)
- Configuration: Single-point rim latching, single and double door with mullions
- Standards: ANSI A156.3 Grade 1, UL Fire and Panic listed
- Features: Modular construction, minimal moving parts, quiet operation
