Description

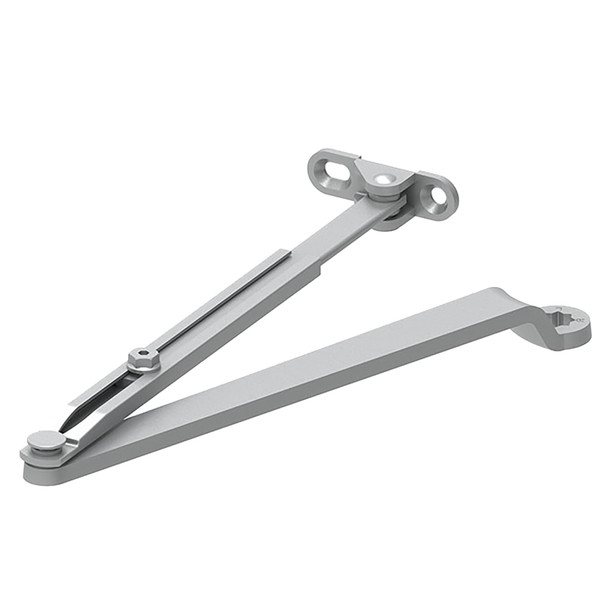

The LCN 1460 Series door closer arm is a Grade 1 commercial-institutional closer designed for maximum versatility in both interior and exterior applications. Its cast iron body, full complement bearing, and adjustable spring (sizes 1-6) accommodate doors up to 5'0" interior and 4'0" exterior, solving the need for reliable, ADA-compliant door control across diverse building types.
This closer mounts on the hinge side, top jamb, or as a parallel arm on right or left swinging doors. Multiple cover options, optional powder coat and plated finishes, and corrosion-resistant primers are available for customization. As an authorized LCN dealer, E.D. Locks offers expert guidance on arm selection, installation, and finish options. Contact our team at sales@edlocks.com or 1-877-207-6067 for technical support.
Specifications
- Brand: LCN
- Series: 1460
- SKU: 1460-3077 689
- Grade: 1
- Body Material: Cast Iron
- Piston Diameter: 1-1/4 In.
- Pinion Journal Diameter: 3/4 In.
- Spring Adjustment: Size 1-6
- Interior Door Capacity: Up to 5'0"
- Exterior Door Capacity: Up to 4'0"
- Mounting Options: Hinge side, top jamb, parallel arm
- Hand: Right or left swinging doors
- Cycle Test Rating: 2,000,000 cycles
- ADA Compliant: Yes
- Finish Options: Standard powder coat, optional plated finish, optional SRI primer
- Installation Template: Stick-on template included
- Special Feature: Cush-N-Stop function
