Description

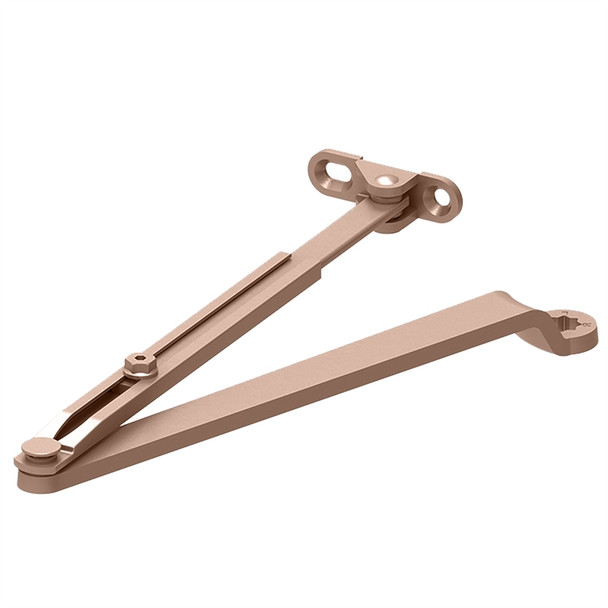

The LCN 1460-3077 STAT is a Grade 1 commercial door closer arm designed for versatility across institutional and commercial applications. It solves the challenge of controlling door swing speed and closing force with a cast iron body, adjustable spring strength (sizes 1-6), and all-weather fluid. This non-handed, fully reversible closer suits both interior doors up to 5'0" and exterior doors up to 4'0".
The 1460-3077 mounts on the hinge side, top jamb, or parallel arm configuration for right or left swinging doors, with independent adjustment valves for backcheck, closing, and latching speeds. As an authorized LCN dealer, E.D. Locks provides expert installation guidance and support at sales@edlocks.com or 1-877-207-6067 to ensure proper setup and compliance with ADA requirements.
Specifications
- Brand: LCN
- Model: 1460-3077 STAT
- Grade: 1
- Body Material: Cast Iron
- Piston Diameter: 1-1/4 inches
- Pinion Journal: 3/4 inch diameter, heat treated
- Spring Adjustment: Sizes 1 to 6
- Interior Door Rating: Up to 5'0"
- Exterior Door Rating: Up to 4'0"
- Cycle Rating: 2,000,000 cycles tested
- Installation Options: Regular (pull side), Top jamb (push side), Parallel arm (push side)
- Handed: Non-handed, fully reversible
- ADA Compliant: Yes
- Finish Options: Standard powder coat, optional custom finishes, optional plated finish on Designer Series
- Special Features: Cush-N-Stop built-in stop function, stick-on template for installation
