Description

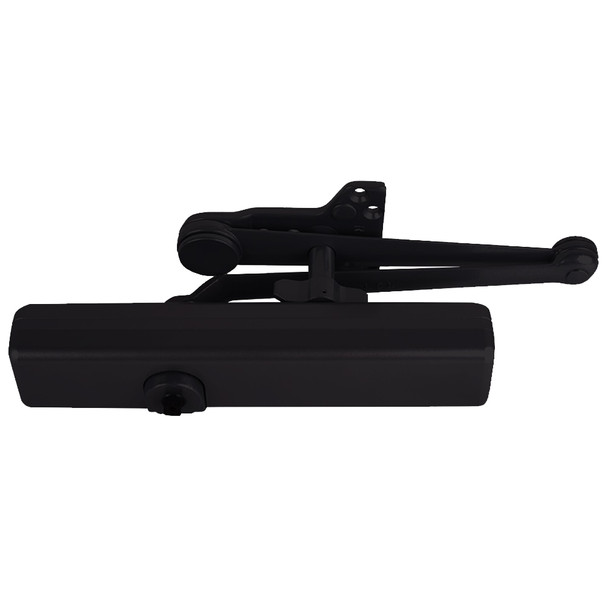

The LCN 1461-HCUSH is a Grade 1 universal surface-mounted door closer designed for commercial and institutional applications on doors up to 5 feet (interior) or 4 feet (exterior). Its cast iron body, adjustable spring strength (sizes 1-6), and Cush-N-Stop function protect against damage while providing reliable closure on both left and right swinging doors.
This closer installs on the hinge side, top jamb, or with a parallel arm configuration, fitting standard door frames without modification. As an authorized LCN dealer, E.D. Locks provides expert guidance on sizing, installation, and maintenance. Contact our team at sales@edlocks.com or 1-877-207-6067 for personalized support and to verify compatibility with your specific door setup.
Specifications
- Grade: 1
- Body Material: Cast iron
- Piston Diameter: 1-1/4 inch
- Pinion Journal: 3/4 inch diameter, single heat treated
- Spring Adjustment: Sizes 1 to 6 (factory set to 3)
- Cycle Rating: 2,000,000 cycles
- Door Size Capacity: Up to 5 feet (interior), 4 feet (exterior)
- Installation Options: Regular (pull side), top jamb (push side), parallel arm (push side)
- Reversibility: Universal, fully reversible, non-handed
- Finish: Black standard; optional custom powder coat, plated, or SRI primer available
- Features: Cush-N-Stop built-in stop, concealed adjustment valves, stick-on template for installation
- ADA Compliant: Yes
