Description

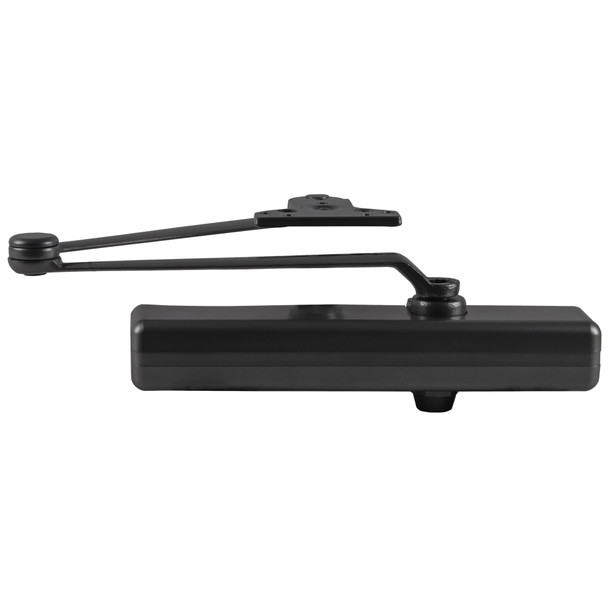

The LCN 1461-HEDA is a Grade 1 surface-mounted door closer designed for commercial and institutional applications on right-hand swing doors. Built with a cast iron body and fully adjustable spring strength (sizes 1-6), it solves the need for reliable, durable door control on interior doors up to 5'0" and exterior doors up to 4'0", meeting ADA requirements.
This closer mounts on the hinge side or top jamb with multiple arm options and features independent adjustment valves for backcheck, closing, and latching speeds. As an authorized LCN dealer, E.D. Locks offers expert installation guidance and ongoing support at sales@edlocks.com or 1-877-207-6067 to ensure optimal performance and longevity.
Specifications
- Brand: LCN
- Model: 1461-HEDA RH
- Grade: 1
- Finish: Black
- Body Material: Cast iron
- Piston Diameter: 1-1/4 inch
- Pinion Journal: 3/4 inch diameter, single heat treated
- Spring Sizes: Adjustable 1 to 6
- Interior Door Rating: Up to 5'0"
- Exterior Door Rating: Up to 4'0"
- Cycle Rating: Tested to 2,000,000 cycles
- Mounting Options: Hinge side, top jamb, parallel arm
- Hand: Right-hand swing
- Features: Cush-N-Stop function, fully reversible, non-handed cylinder, concealed adjustment valves, stick-on installation template
- Fluid: All-weather
