Description

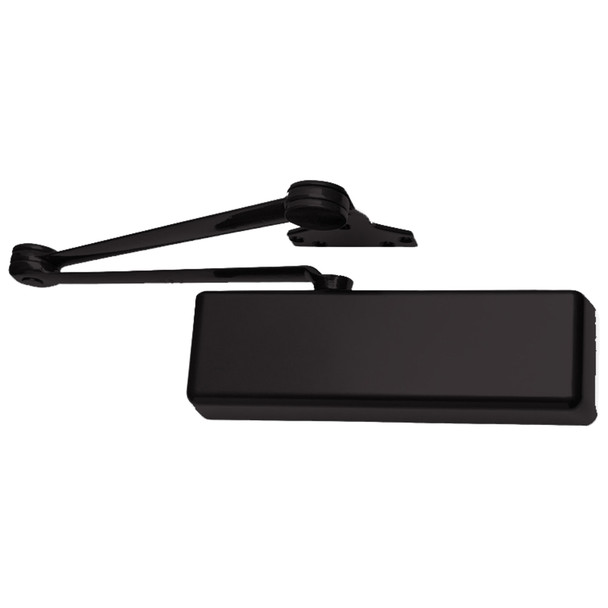

The LCN 4040XP-HEDA is a heavy-duty surface-mounted door closer engineered for high-traffic institutional and commercial applications. With 44% increased bearing load capacity, a reinforced 3/4" pinion journal, and an advanced V-shield seal, it delivers superior durability and longevity in demanding environments where reliability is critical.
This right-hand closer mounts on the hinge side, top jamb, or parallel arm bracket and suits interior doors to 5 feet and exterior doors to 4 feet. It is UL and cUL listed, ANSI A156.4 Grade One certified, and ADA-compliant. For sizing assistance, compatibility questions, or custom finish options including optional SRI corrosion primer, contact our authorized dealer experts at sales@edlocks.com or 1-877-207-6067.
Specifications
- Brand: LCN
- Model: 4040XP-HEDA RH
- Finish: Black
- Mounting: Hinge side, top jamb, or parallel arm (PA bracket)
- Handed: Right-Hand (Non-handed cylinder)
- Interior Door Capacity: Up to 5'0"
- Exterior Door Capacity: Up to 4'0"
- Pinion Journal Diameter: 3/4"
- Bearing Width: 5/8"
- Construction: Cast iron body, forged steel arm, double heat-treated steel pinion
- Fluid: All-weather
- Certifications: UL and cUL listed, ANSI A156.4 Grade One
- Seal: V-shield with 20% extended life
- Features: Fast Power Adjust, Fast & Accurate Installation
- Optional Finishes: Powder coat (standard or custom), plated finish on metal components, SRI primer for corrosive environments
- Accessories: Compatible with all 4040 accessories
