Description
The LCN 1461 is a Grade 1 surface-mounted door closer designed for commercial and institutional buildings. Its cast iron body, adjustable spring strength (sizes 1-6), and non-handed reversible design make it suitable for interior doors up to 5 feet and exterior doors to 4 feet. The Cush-N-Stop function protects against impact damage.
This closer mounts on the hinge side or top jamb and works with regular, parallel, or top jamb arms on either right or left swinging doors. It meets ADA requirements and comes standard with a slim line plastic cover. As an authorized LCN dealer, E.D. Locks offers expert guidance on sizing, finish selection, and installation. Contact sales@edlocks.com or call 1-877-207-6067 for personalized assistance.
Specifications
- Brand: LCN
- Model: 1461-RW/PA US11 DS
- Grade: 1
- Body Material: Cast iron
- Piston Diameter: 1-1/4 inch
- Pinion Journal: 3/4 inch diameter, heat treated
- Spring Adjustment: Sizes 1-6
- Interior Door Capacity: Up to 5 feet
- Exterior Door Capacity: Up to 4 feet
- Cycle Rating: 2,000,000 cycles
- Mounting Options: Hinge side, top jamb, parallel arm
- Handed: Non-handed, fully reversible

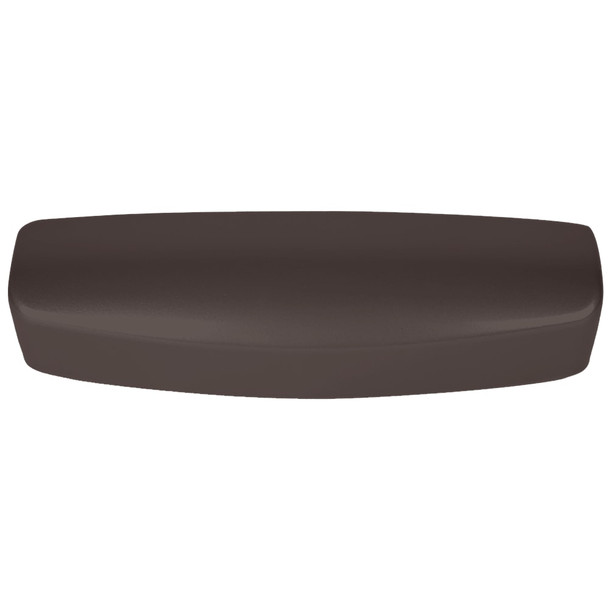

- Standard Cover: Slim line plastic
- Optional Covers: Full, Designer Series
- Standard Finish: Powder coat
- Optional Finishes: Custom powder coat, plated (Designer Series), SRI primer
- Compliance: ADA requirements
- Features: Concealed adjustment valves, independent backcheck/closing/latching controls, Cush-N-Stop function, stick-on installation template
