Description
The LCN 1461 is a Grade 1 surface-mounted door closer engineered for high-traffic commercial and institutional environments. Its cast iron body, full-complement bearing design, and adjustable spring strength (1-6) handle doors from 5'0" interior to 4'0" exterior, solving durability and control challenges across diverse installations.
The 1461-RW/PA mounts on the hinge side with a regular arm and slim-line plastic cover, and accepts optional full or designer series covers. It is fully reversible for right or left swing doors and meets ADA requirements. As an authorized LCN dealer, E.D. Locks provides expert sizing, finish selection, and installation support at sales@edlocks.com or 1-877-207-6067.
Specifications
- Grade 1 closer
- Cast iron body with full-complement bearing
- Piston diameter: 1-1/4 inch
- Pinion journal: 3/4 inch diameter, heat treated
- Spring sizes: 1-6, adjustable and factory-set to size 3
- Cylinder: Non-sized, adjustable for interior doors to 5'0" and exterior doors to 4'0"
- Mount location: Hinge side, top jamb, or parallel arm
- Application: Right or left swinging doors

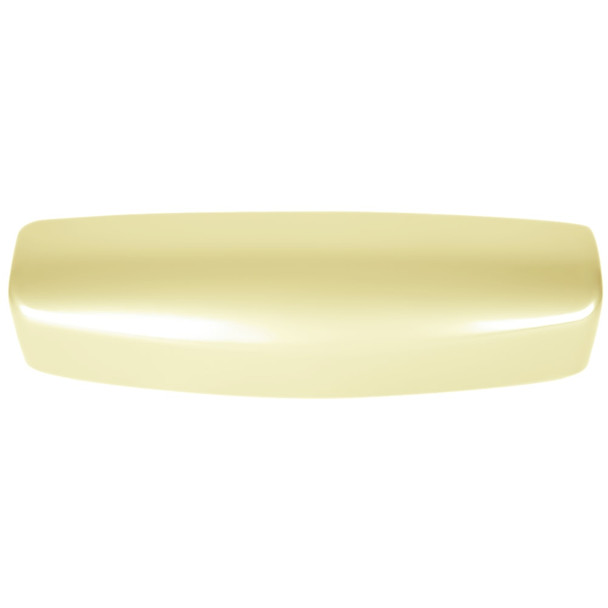

- Standard cover: Slim-line plastic
- Optional covers: Full series or Designer series
- ADA compliant
- Finish options: Standard powder coat or optional plated finish on Designer series; optional SRI primer for corrosive environments
- Independent adjustment valves for backcheck, closing, and latching speeds
- Cush-N-Stop function with built-in stop
- Tested to 2,000,000 cycles
- Includes stick-on template for installation
