Description

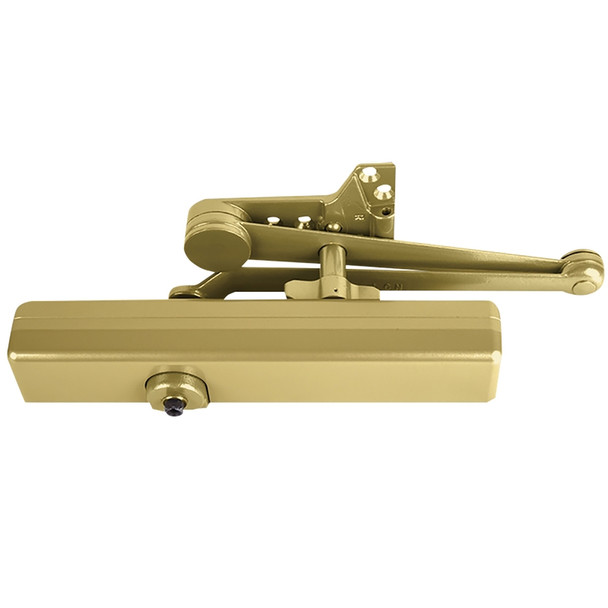

The LCN 1461-SCUSH is a Grade 1 surface-mounted door closer designed for commercial and institutional buildings. This universal, fully reversible closer fits interior doors up to 5'0" and exterior doors up to 4'0", solving the need for reliable, ADA-compliant door control on both left and right swinging doors with adjustable spring strength from size 1 to 6.
The 1461-SCUSH features a cast iron body, full complement bearing, and all-weather fluid for 2,000,000-cycle durability. It offers three installation options (regular arm, top jamb, or parallel arm) with concealed adjustment valves for backcheck, closing, and latching speeds. Cush-N-Stop® integrated stop prevents damage during abrupt closures. As an authorized LCN dealer, E.D. Locks provides expert installation guidance and custom finish options—contact sales@edlocks.com or 1-877-207-6067 for application support.
Specifications
- Brand: LCN
- Model: 1461-SCUSH
- Grade: 1
- Body: Cast iron with full complement bearing
- Piston Diameter: 1-1/4 in.
- Pinion Journal: 3/4 in. diameter, heat treated
- Spring Adjustment: Size 1 to 6, factory set to 3
- Interior Door Capacity: Up to 5'0"
- Exterior Door Capacity: Up to 4'0"
- Cycle Rating: 2,000,000 cycles
- Installation Options: Regular arm, top jamb, parallel arm
- Mounting: Hinge side or top jamb, right or left swing
- ADA Compliant: Yes
- Finish: Brass standard; optional powder coat or plated finishes
- Special Features: Cush-N-Stop, concealed adjustment valves, stick-on template
