Description

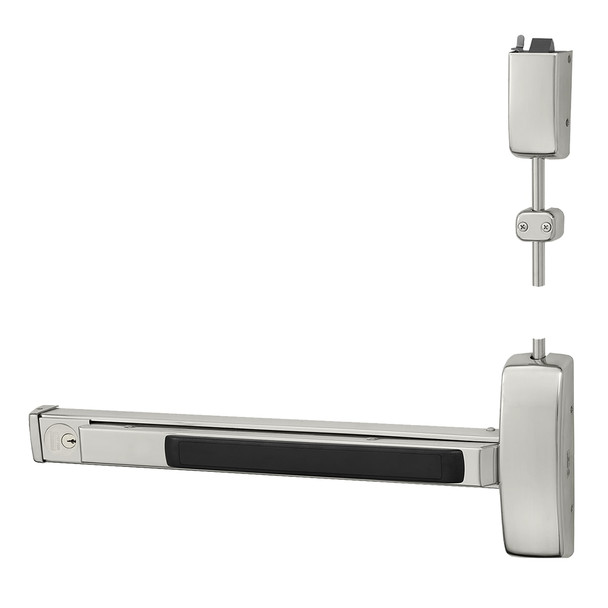

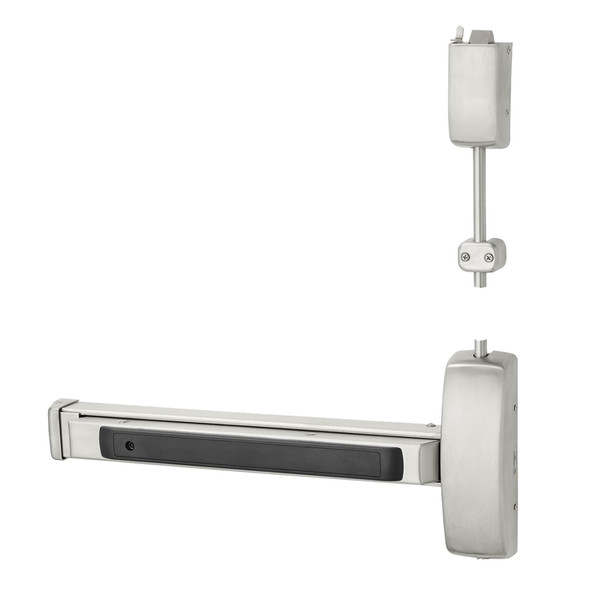

The Sargent 80 Series exit device is a heavy-duty push bar solution for wood and metal doors in commercial buildings. Designed for facilities demanding ANSI/BHMA Grade 1 security and durability, this left-hand reverse mortise model features modular construction, minimal maintenance, and exceptional cycle life. Ideal for high-traffic entrances and emergency exits.
This device fits 1-3/4" standard doors and accommodates 24" to 32" door widths with the E rail (no cutting required). Compatible with wood or metal construction, it supports optional delayed egress, alarmed exit, and electric latch retraction features. Contact an authorized E.D. Locks specialist at sales@edlocks.com or 1-877-207-6067 for sizing assistance across all rail options and to verify compatibility with your specific door assembly.
Specifications
- Model: 16-NB8706E LHR 32D
- Series: Sargent 80
- Configuration: Left-Hand Reverse Mortise
- Door Thickness: 1-3/4" (44mm)
- Door Width Range (E Rail): 24" to 32" (61cm to 81cm)
- Standard No-Cut Width: 32"
- Minimum Stile (with trim): 4-1/2" (114mm)
- Minimum Stile (without trim): 3-1/2" (89mm)
- Door Types: Wood or Metal
- Rating: Exceeds ANSI/BHMA Grade 1
- Optional Features: Delayed egress, alarmed exit, electric latch retraction
