Description

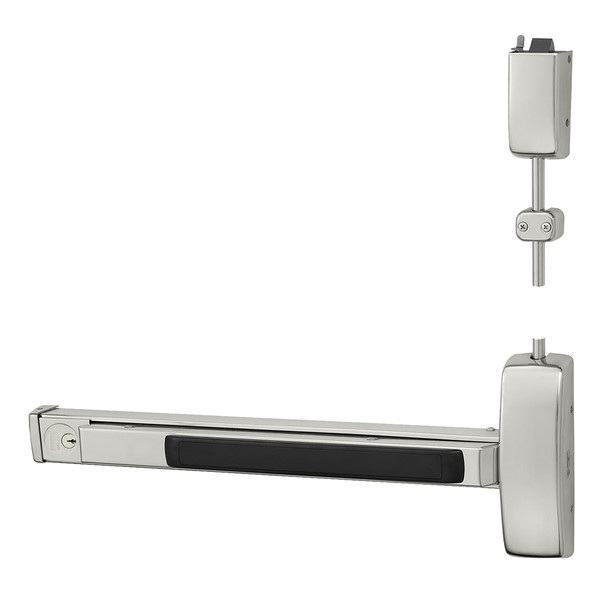

The Sargent 80 Series exit device is a heavy-duty egress solution for wood and metal doors in commercial and institutional buildings. Engineered to exceed ANSI/BHMA Grade 1 requirements, it delivers maintenance-free operation with modular construction and minimal moving parts, ideal for facilities demanding maximum durability and security throughout the building's lifetime.
This model (16-NB8706E ETB LHR 32D) fits 1-3/4 inch thick doors with E rail configuration for 24-32 inch door widths; no cutting required for 32 inch doors. Options include delayed egress, alarmed exit, and electric latch retraction for specialized applications. As an authorized Sargent dealer, E.D. Locks provides expert specification support and fast shipping. Contact sales@edlocks.com or call 1-877-207-6067 for assistance selecting the right configuration for your project.
Specifications
- Brand: Sargent
- Series: 80 Series
- Model: 16-NB8706E ETB
- Handing: LHR (Left Hand Reverse)
- Finish: 32D (Stainless Steel)
- Door Thickness: 1-3/4 inch (44mm)
- Rail Type: E Rail
- Door Width Range: 24-32 inches (61-81cm)
- No Cutting Required: 32 inch doors
- Minimum Stile: 4-1/2 inch with trim, 3-1/2 inch without trim
- Standards: Exceeds ANSI/BHMA Grade 1
- Door Types: Wood or metal
