Description

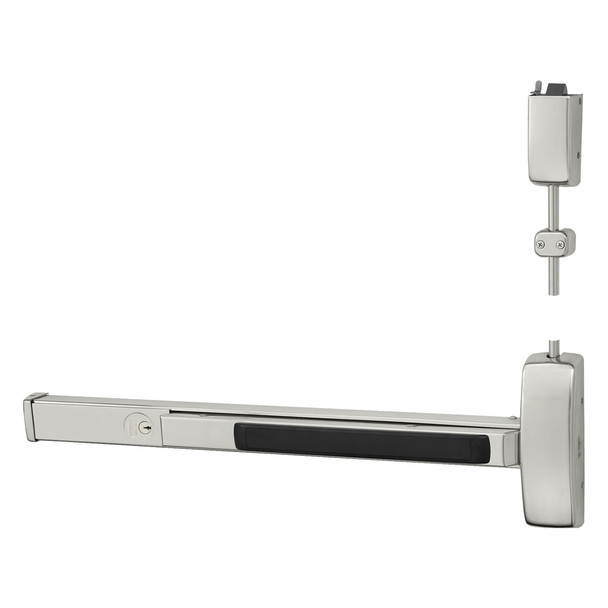

The Sargent 80 Series exit device is engineered for commercial facilities demanding Grade 1 durability and compliance. This rim-mounted panic bar suits wood or metal doors 1 3/4" thick, with a 32" E-Rail width requiring no cutting. Ideal for architects and facility managers, it delivers code-compliant egress and security in one maintenance-free unit.
Compatible with standard hollow metal and wood door frames; installation requires basic carpentry or professional fitting. Sargent's modular design minimizes moving parts and service calls. As an authorized E.D. Locks dealer, we provide expert configuration guidance and fast shipping. Contact sales@edlocks.com or call 1-877-207-6067 to confirm your door specifications and explore optional delayed egress or electric latch retraction features.
Specifications
- Brand: Sargent
- Model: 16-NB8713F ETA RHR 32D
- Series: 80 Series
- Configuration: Rim, Right-Hand Reverse
- Door Thickness: 1 3/4" (44mm)
- Rail Type: E Rail
- Rail Width: 24" to 32" (61cm to 81cm)
- No Cutting Required For: 32" door
- Minimum Stile Width: 4 1/2" (114mm) with trim; 3 1/2" (88mm) without trim
- Door Types: Wood or metal
- Standards: Exceeds ANSI/BHMA Grade 1
