Description

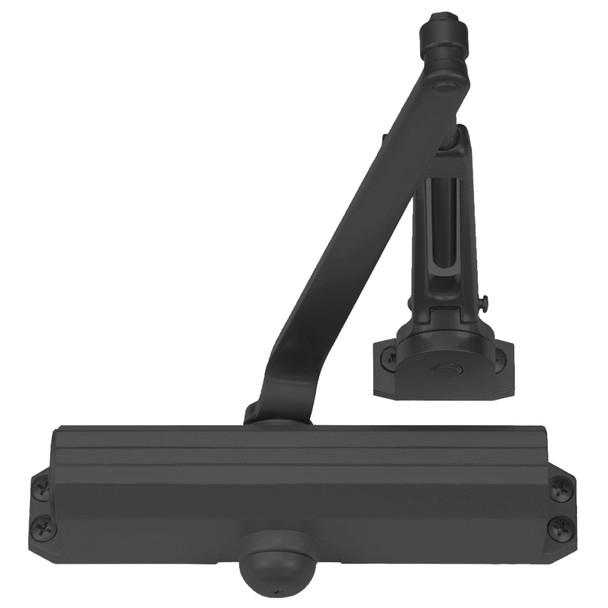

The Norton 1604BCH 693 is a heavy-duty surface-mounted door closer designed for aluminum storefront doors and interior/exterior applications. Built with a cast aluminum body and rack-and-pinion mechanism, it delivers proven reliability across demanding environments and is non-handed for flexible installation on either door orientation.
This closer mounts directly to the door surface with minimal projection and operates reliably from -40°F to extreme heat. Hex key adjustable valves let you independently regulate sweep and latch speed for your specific door weight and traffic pattern. As an authorized Norton dealer, E.D. Locks offers expert sizing guidance and technical support at sales@edlocks.com or 1-877-207-6067 to ensure optimal performance.
Specifications
- Series: Norton 1600
- Model: 1604BCH 693
- Type: Surface-mounted, rack-and-pinion
- Body: Cast aluminum alloy
- Hand: Non-handed
- Surface projection: Maximum 2-7/8 inches
- Cycle rating: Exceeds 12 million cycles
- Temperature range: -40°F to extreme heat
- Adjustment: Two hex key adjustable valves for sweep and latch speed
- Backcheck: Adjustable cushioning (hex key valve)
- Delayed action: Adjustable (hex key valve)
- Power adjustment: 15% non-hold open shoe (±7.5%)
- Certification: Environmental Product Declaration (EPD) certified
