Description

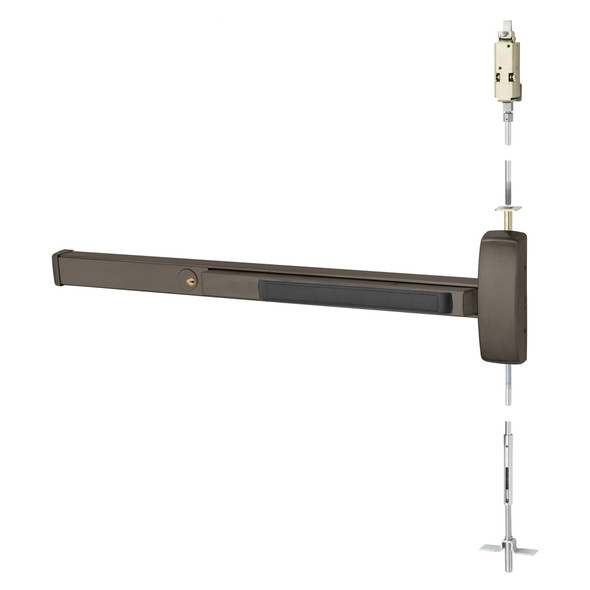

The Sargent 80 Series exit device is a heavy-duty panic bar solution for commercial metal doors requiring ANSI/BHMA Grade 1 security and reliability. Ideal for facilities prioritizing durability and low maintenance, this right-hand reverse (RHR) device features modular construction with few moving parts, ensuring consistent performance throughout the building's life.
This 10BE model installs on 1-3/4" minimum thickness metal doors and accommodates door widths from 24" to 48" with factory-cut rails (E, F, J, or G options). Includes 650 top and 606 bottom strikes rated for panic and fire applications. For sizing assistance, compatibility with electric options (alarm, photoluminescent, delayed egress, remote latch retraction), or custom configurations, contact E.D. Locks at sales@edlocks.com or 1-877-207-6067.
Specifications
- Brand: Sargent
- Model: 19-AD8673F RHR 10BE
- Configuration: Rim exit device, right-hand reverse
- Door Thickness: 1-3/4" (44mm) minimum
- Door Width Range: 24" to 48" (rail-dependent)
- Rail Options: E (24"-32"), F (33"-36"), J (37"-42"), G (43"-48")
- Strikes: 650 top strike and 606 bottom strike (panic and fire rated)
- Device Centerline: 41" (1041mm) from finished floor, standard applications
- Center Case Dimensions: 8-3/8" (213mm) x 2-5/8" (67mm)
- Pushbar Projection: 3" (76mm) neutral, 2-1/8" (54mm) depressed
- Maximum Door Height: 96"
- Dogging: Hex key standard on non-fire-rated devices
- Fasteners: Machine screws, stainless steel top bolt
- Grade: Exceeds ANSI/BHMA Grade 1
