Description

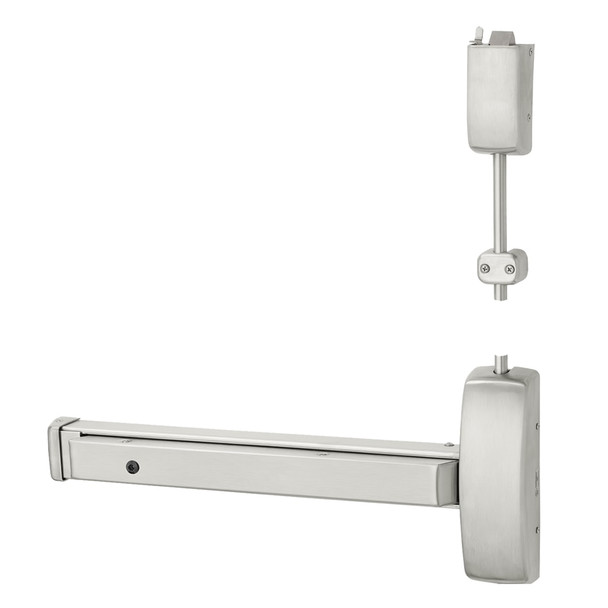

The Sargent 80 Series exit device is a heavy-duty egress solution engineered for commercial buildings and facilities demanding superior durability and security. Ideal for wood or metal doors 1-3/4" thick, this rim-mounted device exceeds ANSI/BHMA Grade 1 standards for cycle and strength, offering maintenance-free operation with modular construction and minimal moving parts for long-term reliability.
The 19-NB8706E ETB configuration fits E-Rail doors 24" to 32" wide with no cutting required at 32". This left-hand reverse (LHR) unit accommodates standard 1-3/4" thick doors and supports optional features including delayed egress, alarmed exit, and electric latch retraction. Contact an authorized E.D. Locks dealer at sales@edlocks.com or 1-877-207-6067 for expert specification assistance and free shipping on orders over $450.
Specifications
- Brand: Sargent
- Model: 19-NB8706E ETB LHR 32D
- Configuration: Rim-mounted exit device
- Handing: Left-hand reverse (LHR)
- Rail type: E-Rail
- Door width: 24" to 32" (61cm to 81cm)
- No cutting required: 32" doors
- Door thickness: 1-3/4" (44mm)
- Door type: Wood or metal
- Stile width: 4-1/2" (114mm) minimum with trim; 3-1/2" (88mm) minimum without trim
- Grade: ANSI/BHMA Grade 1 exceeds
- Optional features: Delayed egress, alarmed exit, electric latch retraction
