Description

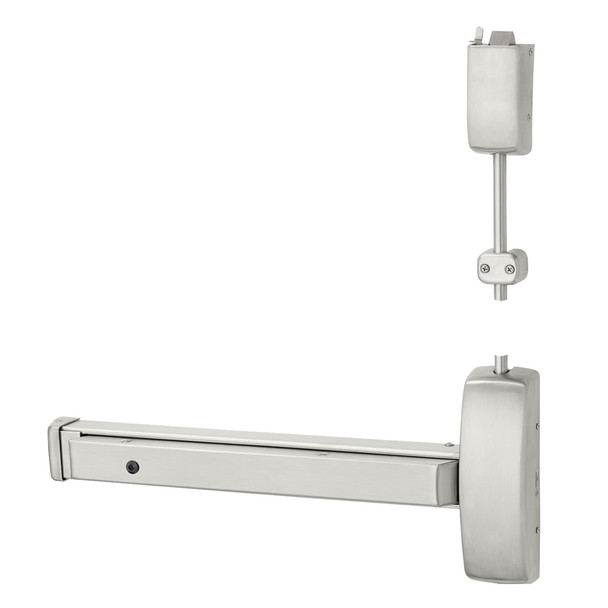

The Sargent 80 Series exit device is a heavy-duty egress solution designed for commercial buildings, schools, hospitals, and facilities demanding Grade 1 security and durability. This rim-mounted device with right-hand reverse orientation provides maintenance-free operation with modular construction, few moving parts, and cycle strength that exceeds ANSI/BHMA Grade 1 requirements for long-lasting performance.
This model fits wood or metal doors 1 3/4 inch thick with E-rail configuration for door widths 24 to 32 inches (no cutting required for 32 inch doors). Sargent 80 Series devices support optional delayed egress, alarmed, and electric latch retraction features. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for specification verification, installation guidance, and application support.
Specifications
- Brand: Sargent
- Model: 19-NB8713E ETJ RHR 32D
- Configuration: Rim, Right-Hand Reverse
- Door Types: Wood or metal
- Door Thickness: 1 3/4 inch (44mm)
- Door Width Range: 24 to 32 inches (61cm to 81cm)
- Rail Type: E Rail
- Minimum Stile: 4 1/2 inch with trim, 3 1/2 inch without trim
- Standard: Exceeds ANSI/BHMA Grade 1
- Optional Features: Delayed egress, alarmed exit, electric latch retraction
