Description

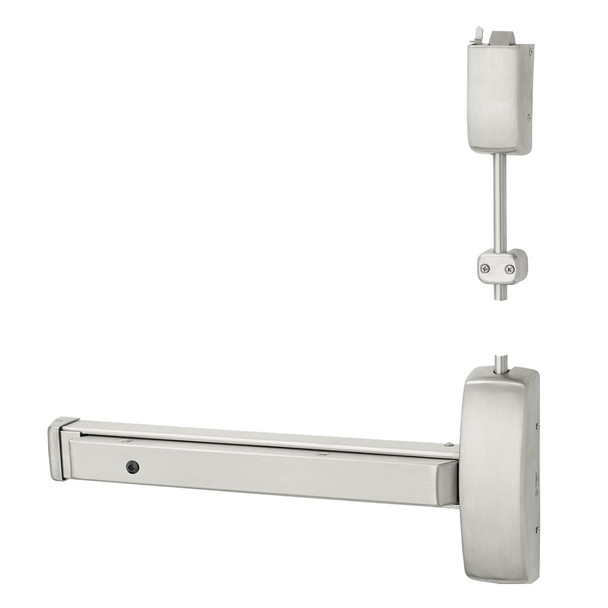

The Sargent 80 Series exit device is a heavy-duty push bar solution for wood and metal doors in commercial facilities requiring Grade 1 security and reliability. Ideal for high-traffic environments, this rim-mounted device exceeds ANSI/BHMA standards for cycle and strength, with modular construction and minimal maintenance needs.
Compatible with 1-3/4" to 2-1/4" thick doors; this RHR model fits 24" to 32" door widths with no cutting required at 32". E, F, J, and G rail options accommodate wider openings. Contact an authorized E.D. Locks dealer at sales@edlocks.com or 1-877-207-6067 for proper sizing, keying, and installation guidance tailored to your facility.
Specifications
- Brand: Sargent
- Model: 19-NB8713E ETL RHR 32D
- Type: Rim Exit Device
- Door Thickness: 1-3/4" to 2-1/4" (44mm to 57mm)
- Minimum Stile: 4-1/2" with trim; 3-1/2" without trim
- Door Width (E Rail): 24" to 32" (61cm to 81cm)
- Door Width (F Rail): 33" to 36" (84cm to 91cm)
- Door Width (J Rail): 37" to 42" (94cm to 107cm)
- Door Width (G Rail): 43" to 48" (110cm to 122cm)
- Standards: Exceeds ANSI/BHMA Grade 1
- Hand: Right Hand Reverse (RHR)
