Description

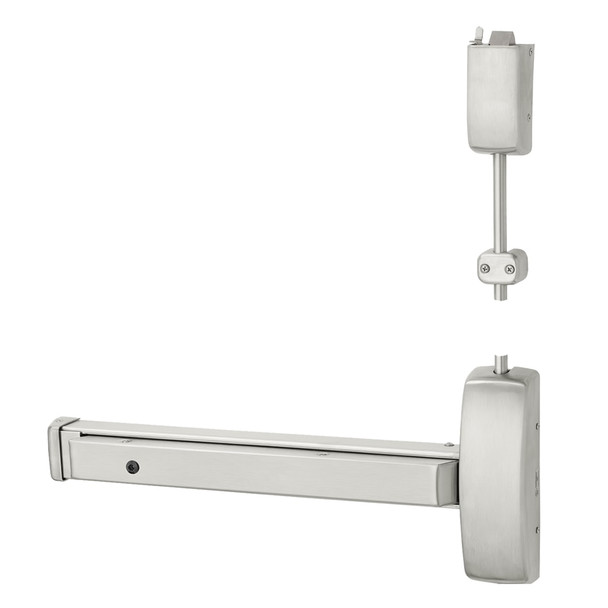

The Sargent 80 Series exit device is a Grade 1 certified panic bar designed for wood and metal doors in commercial facilities demanding durability and security. Ideal for buildings where reliable egress hardware must perform for decades, this rim-mounted device features modular construction with minimal moving parts, reducing maintenance while exceeding ANSI/BHMA Grade 1 cycle and strength standards.
This right-hand reverse (RHR) model fits 1-3/4" thick doors and suits 24"-32" door widths with the E Rail configuration, requiring no cutting for 32" doors. Options include delayed egress, alarmed exit, and electric latch retraction for specialized applications. As an authorized Sargent dealer, E.D. Locks provides expert installation guidance and ongoing support at sales@edlocks.com or 1-877-207-6067.
Specifications
- Brand: Sargent
- Model: 19-NB8740E RHR 32D
- Series: 80 Series
- Configuration: Rim exit device, right-hand reverse
- Door Thickness: 1-3/4" (44mm)
- Door Width: 24"-32" (E Rail, 32" no cutting required)
- Door Types: Wood or metal
- Stile Requirements: 4-1/2" minimum with trim, 3-1/2" minimum without trim
- Certification: ANSI/BHMA Grade 1
- Construction: Modular with few moving parts
- Options Available: Delayed egress, alarmed exit, electric latch retraction
