Description

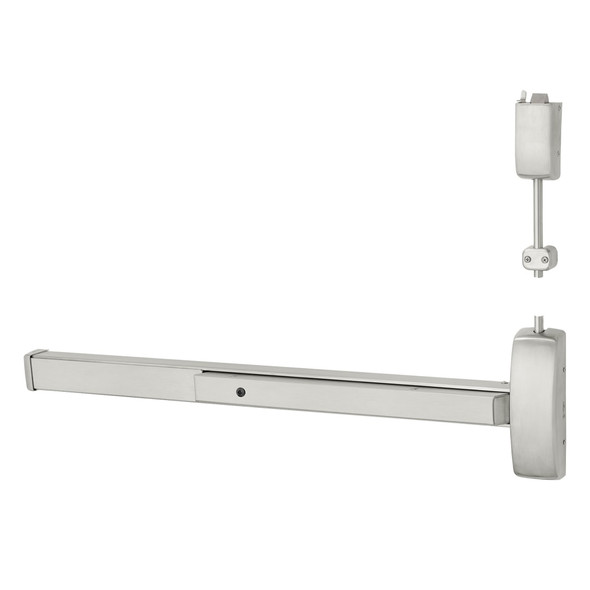

The Sargent 80 Series exit device is a Grade 1 panic bar built for high-traffic commercial doors requiring reliable emergency egress. Ideal for offices, hospitals, retail, and institutional buildings, it delivers maintenance-free operation with modular construction and few moving parts, exceeding ANSI/BHMA strength and cycle requirements for the life of the building.
This RHR model fits wood or metal doors 1-3/4 inches thick with E, F, J, or G rail options accommodating door widths from 24 to 48 inches. Contact our authorized dealer experts at sales@edlocks.com or 1-877-207-6067 for proper sizing, keying options including delayed egress and alarmed configurations, and professional installation guidance.
Specifications
- Series: 80 Series
- Model: 19-NB8773G
- Handing: RHR (Right Hand Reverse)
- Door Thickness: 1-3/4 inches (44mm)
- Door Width Range: 24 to 48 inches (rail-dependent)
- E Rail: 24 to 32 inches
- F Rail: 33 to 36 inches
- J Rail: 37 to 42 inches
- G Rail: 43 to 48 inches
- Minimum Stile: 4.5 inches with trim, 3.5 inches without trim
- Certification: Exceeds ANSI/BHMA Grade 1
- Compatible Door Types: Wood or metal
- Options: Delayed egress, alarmed exit, electric latch retraction
