Description

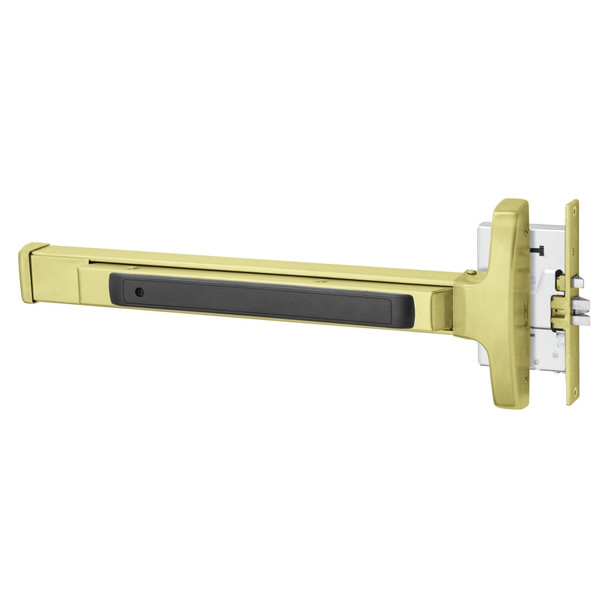

The Sargent 80 Series exit device is a heavy-duty push bar mechanism designed for facilities requiring ANSI/BHMA Grade 1 certified egress solutions. Ideal for wood or metal doors, this rim-mounted device combines modular construction with minimal maintenance, delivering reliable emergency exit performance for commercial buildings, healthcare facilities, and high-traffic environments.
Fits 1-3/4" standard doors with 4-1/2" minimum stile width; E Rail accommodates 24"-32" doors. Available in multiple configurations including delayed egress and alarmed options. As an authorized Sargent dealer, E.D. Locks provides expert sizing assistance and installation support. Contact our team at sales@edlocks.com or 1-877-207-6067 to ensure correct rail selection and door thickness specifications.
Specifications
- Brand: Sargent
- Model: 1943-8343E
- Configuration: Rim, LHR (Left Hand Reverse)
- Door Thickness: 1-3/4" (44mm)
- Minimum Stile Width: 4-1/2"
- Rail Type: E Rail
- Door Width Range: 24" to 32" (61cm to 81cm)
- Standard Door: 32" (no cutting required)
- Certification: Exceeds ANSI/BHMA Grade 1
