Description

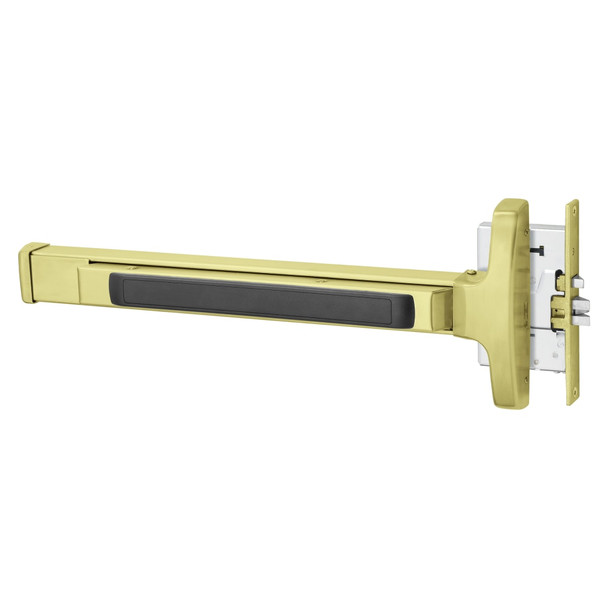

The Sargent 80 Series exit device is a heavy-duty panic bar built for facilities requiring lasting security and compliance. Ideal for wood or metal doors, it exceeds ANSI/BHMA Grade 1 standards for cycle and strength. With modular construction and minimal moving parts, this device delivers maintenance-free operation and reliable egress control for any building type.
This left-hand reverse (LHR) model fits doors 1-3/4" thick with a 4-1/2" minimum stile and supports E rail widths of 24" to 32". Sargent 80 Series devices accommodate various configurations including delayed egress, alarmed exit, and electric latch retraction. As an authorized E.D. Locks dealer, we provide expert installation guidance and product support at sales@edlocks.com or 1-877-207-6067.
Specifications
- Brand: Sargent
- Model: 194356-8343E LHR 4
- Series: 80 Series
- Orientation: Left-Hand Reverse (LHR)
- Door Thickness: 1-3/4" (44mm)
- Minimum Stile Width: 4-1/2" (114mm)
- Rail Type: E Rail
- Door Width Range: 24" to 32" (61cm to 81cm)
- Standard Width (no cutting): 32"
- Standards: Exceeds ANSI/BHMA Grade 1
- Door Types: Wood or metal
