Description

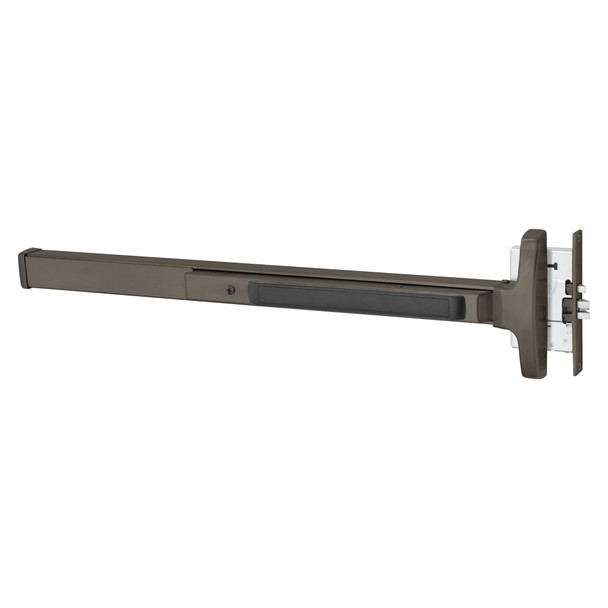

The Sargent 80 Series exit device delivers Grade 1 strength and durability for wood or metal doors in high-traffic facilities. Built for 1-3/4" standard doors with a 4-1/2" minimum stile, this rim-mounted, right-hand-reverse device exceeds ANSI/BHMA requirements through modular design and minimal moving parts, ensuring maintenance-free operation across the building's lifespan.
The 1943-8343F fits F-rail openings from 33" to 36" with no cutting required at 36". Optional delayed egress, alarmed, and electric latch retraction features adapt to unique applications. As an authorized Sargent dealer, E.D. Locks provides expert guidance on compatibility, installation, and configuration. Contact our specialists at sales@edlocks.com or 1-877-207-6067 for custom door widths or technical questions.
Specifications
- Brand: Sargent
- Model: 1943-8343F RHR 10B
- Configuration: Rim-mounted, Right-Hand-Reverse
- Door Types: Wood or metal, 1-3/4" (44mm) thick
- Minimum Stile Width: 4-1/2" (114mm)
- Door Width Range (F-Rail): 33" to 36" (84cm to 91cm)
- No-Cut Width: 36" door
- ANSI/BHMA Grade: Grade 1
