Description

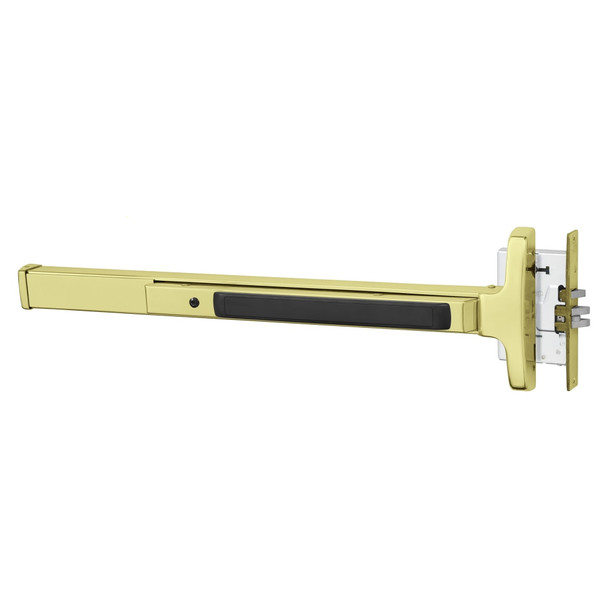

The Sargent 80 Series exit device is a heavy-duty push bar panic hardware solution for wood and metal doors in high-traffic commercial facilities. Designed for durability and compliance, this RHR (right-hand reverse) model exceeds ANSI/BHMA Grade 1 standards and is ideal for building managers, architects and facility planners who need reliable emergency egress hardware that performs for the building's lifetime.
The 1943-8343F fits 1-3/4" standard doors with a 4-1/2" minimum stile and comes in multiple rail options (E, F, J, G) for doors 24" to 48" wide. Modular design and few moving parts mean minimal maintenance. Contact an E.D. Locks authorized dealer at sales@edlocks.com or 1-877-207-6067 for keying, configuration and installation guidance.
Specifications
- Brand: Sargent
- Model: 1943-8343F RHR 3
- Series: 80 Series
- Handedness: RHR (Right-Hand Reverse)
- Door Types: Wood or metal
- Door Thickness: 1-3/4" (44mm); over 1-3/4" specify thickness
- Minimum Stile Width: 4-1/2" (114mm)
- E Rail: 24" to 32" (61cm to 81cm)
- F Rail: 33" to 36" (84cm to 91cm)
- J Rail: 37" to 42" (94cm to 107cm)
- G Rail: 43" to 48" (110cm to 122cm)
- Standards: Exceeds ANSI/BHMA Grade 1
- Features: Modular construction, maintenance-free, optional delayed egress, alarmed exit, electric latch retraction
