Description

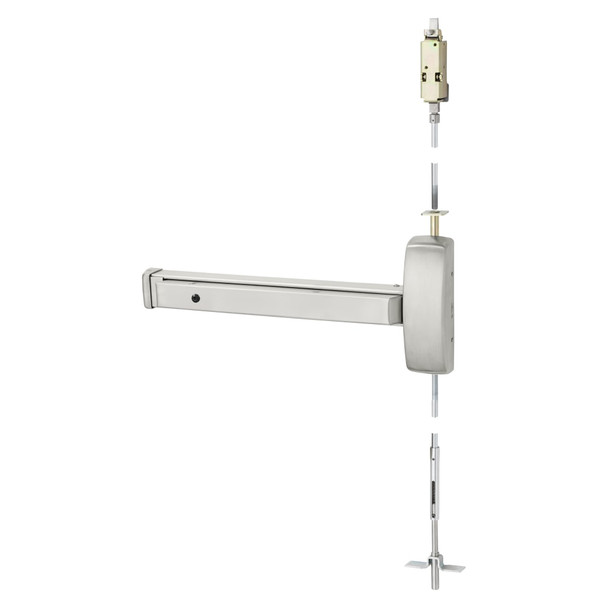

The Sargent 80 Series exit device is a Grade 1 panic hardware solution for metal doors in commercial and institutional buildings. Designed for durability and low maintenance, it features modular construction with minimal moving parts, making it ideal for facilities requiring dependable egress security throughout the building's lifetime.
This rim-mounted, right-hand reverse device fits doors 1-3/4" minimum thickness with a 4-1/2" minimum stile width. Standard features include hex key dogging and stainless steel top bolt. Optional electric functions such as alarm, delayed egress, latch monitoring, and remote retraction are available. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for sizing, configuration guidance, and fast shipping.
Specifications
- Series: 80 Series
- Model: 1943-MD8615E ETW RHR 32D
- Mounting: Rim
- Hand: Right-Hand Reverse
- Door Thickness: 1-3/4" (44mm) minimum; up to 2-1/4" with special order
- Minimum Stile Width: 4-1/2" (114mm)
- Device Centerline Height: 41" (1041mm) standard; 38" (965mm) for accessible applications
- Center Case Dimensions: 8-3/8" (213mm) x 2-5/8" (67mm)
- Pushbar Projection: 3" (76mm) neutral, 2-1/8" (54mm) depressed
- Maximum Door Height: 96"
- ANSI/BHMA Grade: Grade 1
- Top Strike: 650 (panic and fire-rated)
- Bottom Strike: 606 (panic and fire-rated)
- Dogging: Hex key standard on non-fire-rated models
- Top Bolt: Stainless steel
- Fasteners: Machine screws supplied
