Description

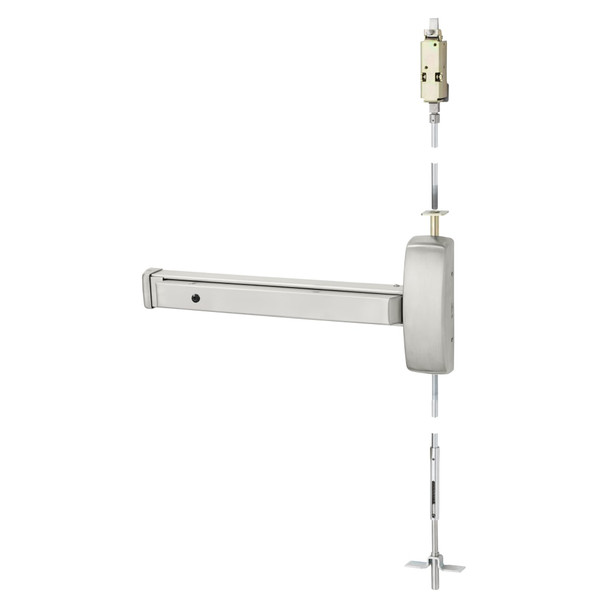

The Sargent 80 Series exit device is a Grade 1 panic hardware solution built for high-traffic commercial buildings and facilities requiring durable, maintenance-free egress control. Ideal for metal doors 1.75 to 2.25 inches thick, this rim-mounted device exceeds ANSI/BHMA strength and cycle requirements with modular construction and minimal moving parts, delivering long-lasting security across educational, institutional and commercial properties.
This ETF model features left-hand reverse (LHR) orientation with standard hex-key dogging and accommodates door widths up to 48 inches with factory-cut rail options (E, F, J, G rails available). Compatible with 650 top and 606 bottom strikes, optional electric features include alarm, photoluminescent coating, illuminated touchpad, latchbolt monitoring and delayed egress. Contact an E.D. Locks specialist at sales@edlocks.com or 1-877-207-6067 for sizing guidance and keying support.
Specifications
- Series: Sargent 80
- Model: 1943-WD8606E
- Configuration: ETF LHR 32D (Rim, Left-Hand Reverse, 32 inch door)
- Door Thickness: 1.75 to 2.25 inches (44 to 57mm)
- Minimum Stile Width: 4.5 inches (114mm)
- Device Centerline Height: 41 inches (1041mm) standard, 38 inches (965mm) for ADA/elementary schools
- Center Case Dimensions: 8.375 x 2.625 inches (213 x 67mm)
- Pushbar Projection: 3 inches (76mm) neutral, 2.125 inches (54mm) depressed
- Top Bolt: Stainless steel
- Strike: 650 top and 606 bottom (panic and fire-rated compatible)
- Dogging: Hex key standard
- ANSI/BHMA Grade: Exceeds Grade 1
- Maximum Door Height: 96 inches
