Description

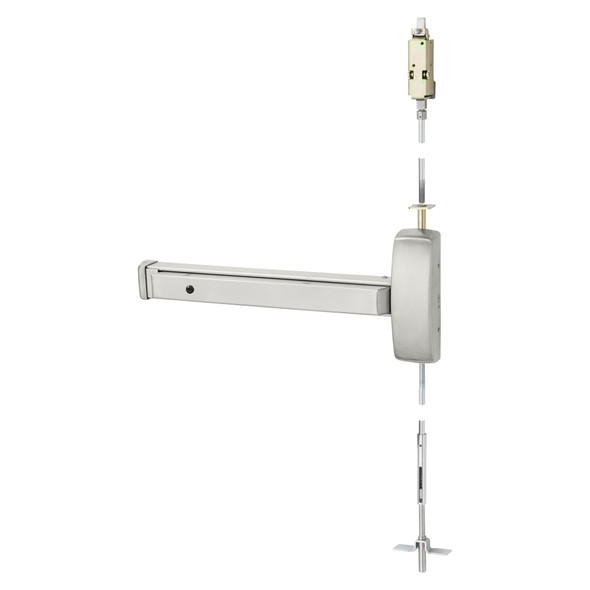

The Sargent 80 Series exit device is a heavy-duty panic bar designed for metal doors in commercial and institutional buildings. Built to ANSI/BHMA Grade 1 specifications, it delivers reliable emergency egress and security with modular construction that minimizes maintenance and maximizes durability across the life of your facility.
This left-hand reverse (LHR) model fits 1-3/4" minimum metal doors and includes a 650 top strike and 606 bottom strike for panic and fire-rated applications. E-Rail configuration accommodates 24" to 32" door widths. For proper sizing, installation guidance, and access to electric options like delayed egress or remote latch retraction, contact our authorized dealer experts at sales@edlocks.com or 1-877-207-6067.
Specifications
- Series: 80 Series
- Model: 5556-WD8606E ETF LHR 32D
- Orientation: Left-Hand Reverse (LHR)
- Rail Configuration: E-Rail (24" to 32" door widths, 32" factory cut)
- Door Types: Metal doors, 1-3/4" (44mm) minimum thickness; up to 2-1/4" thick with specification
- Minimum Stile Width: 4-1/2" (114mm)
- Strike: 650 Top Strike, 606 Bottom Strike (panic and fire-rated)
- Device Centerline: 41" (1041mm) from finished floor for standard applications; 38" (965mm) for elementary schools
- Center Case Dimensions: 8-3/8" (213mm) x 2-5/8" (67mm)
- Pushbar Projection: 3" (76mm) neutral, 2-1/8" (54mm) depressed
- Maximum Door Height: 96"
- Maximum Door Opening: 120" (3048mm)
- Fasteners: Machine screws supplied standard; stainless steel top bolt
- Dogging: Hex key dogging standard on non-fire-rated devices
