Description

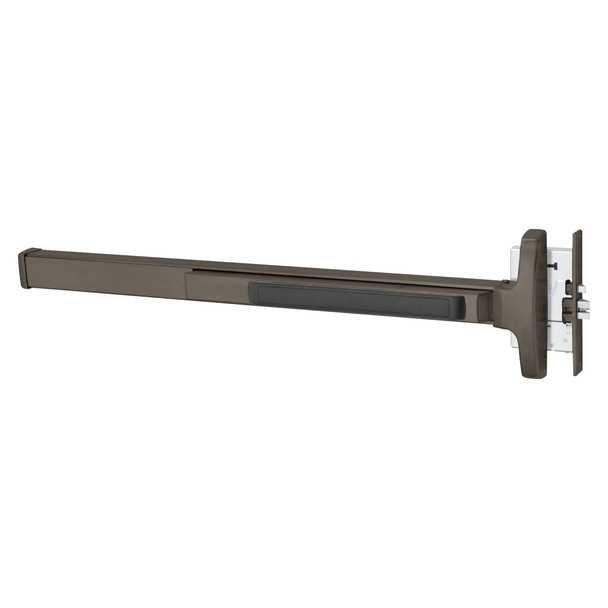

The Sargent 80 Series exit device is a heavy-duty push bar solution for wood and metal doors in commercial buildings. Designed for facilities demanding superior security and durability, it exceeds ANSI/BHMA Grade 1 standards and features modular construction with minimal moving parts for maintenance-free operation throughout the building's life.
This rim-mounted, right-hand reverse model fits standard 1-3/4" doors with 4-1/2" minimum stiles and accommodates various door widths via four rail options (E, F, J, G). Optional features include delayed egress, alarmed exit, and electric latch retraction. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for sizing assistance and expert installation guidance.
Specifications
- Brand: Sargent
- Model: 80 Series 194356-8343G RHR 10B
- Configuration: Rim, Right-Hand Reverse
- Door Type: Wood or metal, 1-3/4" thick (44mm)
- Minimum Stile Width: 4-1/2" (114mm)
- Rail Options: E (24-32"), F (33-36"), J (37-42"), G (43-48")
- Standard: Exceeds ANSI/BHMA Grade 1
- Optional Features: Delayed egress, alarmed exit, electric latch retraction
