Description

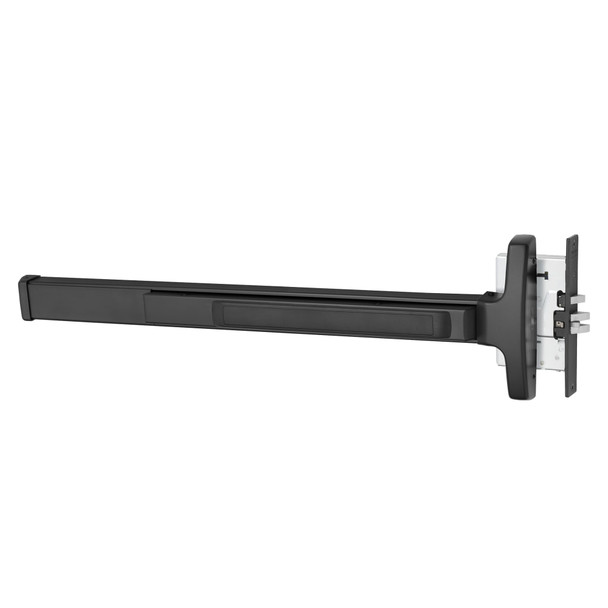

The Sargent 80 Series exit device delivers Grade 1 security for wood or metal doors in high-traffic facilities. Ideal for building managers and security professionals, this right-hand reverse (RHR) push bar solution exceeds ANSI/BHMA requirements with minimal maintenance, few moving parts, and modular construction that lasts the life of your building.
Compatible with 1 3/4" standard doors and stiles 4 1/2" or wider, this model fits G Rail applications (43"–48" door widths). Installation requires no cutting for 48" doors. As an authorized Sargent dealer, E.D. Locks provides expert guidance on configuration, keying, and delayed egress or alarmed options. Contact sales@edlocks.com or 1-877-207-6067 for technical support.
Specifications
- Brand: Sargent
- Model: 194356-8343G RHR BSP
- Configuration: Right-hand reverse (RHR), G Rail
- Door Type: Wood or metal, 1 3/4" thick
- Minimum Stile Width: 4 1/2"
- Door Width Range: 43" to 48"
- No cutting required: 48" doors
- Standard: Exceeds ANSI/BHMA Grade 1
