Description

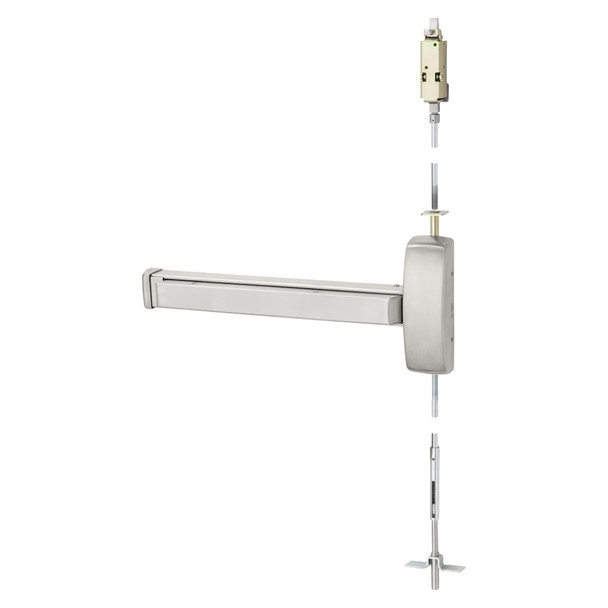

The Sargent 80 Series exit device is a Grade 1 panic bar for metal doors requiring durable, low-maintenance security. Ideal for commercial facilities, schools, and healthcare settings, it meets ANSI/BHMA standards and features modular construction with few moving parts, eliminating costly maintenance while providing reliable emergency egress control.
This left-hand reverse model suits 1-3/4" minimum thickness doors with E-rail configuration (24" to 32" door widths). Electric options include delayed egress, alarms, photoluminescent coatings, and latch monitoring. As an authorized Sargent dealer, E.D. Locks offers expert configuration and installation support at sales@edlocks.com or 1-877-207-6067.
Specifications
- Brand: Sargent
- Series: 80 Series
- Model: 194356-MD8643E
- Configuration: LHR (Left Hand Reverse)
- Rail Size: E (24" to 32" door widths)
- Grade: ANSI/BHMA Grade 1
- Door Thickness: 1-3/4" (44mm) minimum
- Stile Width: 4-1/2" (114mm) minimum
- Device Centerline: 41" (1041mm) from finished floor
- Center Case Dimensions: 8-3/8" (213mm) x 2-5/8" (67mm)
- Pushbar Projection (Neutral): 3" (76mm)
- Pushbar Projection (Depressed): 2-1/8" (54mm)
- Top Bolt: Stainless steel
- Dogging: Hex key standard (non fire-rated)
- Maximum Door Height: 96"
- Strikes: 650 Top and 606 Bottom (Panic and Fire-Rated)
