Description

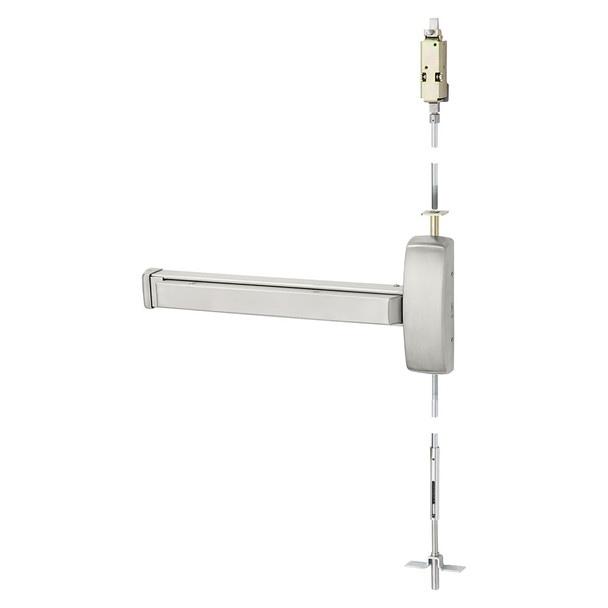

The Sargent 80 Series exit device is a heavy-duty panic bar solution for metal doors in commercial and institutional buildings. Engineered for environments demanding superior durability and security, it exceeds ANSI/BHMA Grade 1 requirements and features modular construction with minimal moving parts, ensuring maintenance-free operation throughout the building's lifecycle.
This rim-mounted device is compatible with metal doors 1 3/4" to 2 1/4" thick and 4 1/2" minimum stile width. Available rail sizes accommodate door widths from 24" to 48", factory-cut to specification. The unit includes standard hex key dogging and optional features like delayed egress, alarmed exit, and electric latch retraction. Contact E.D. Locks at sales@edlocks.com or 1-877-207-6067 for expert configuration guidance and authorized dealer support.
Specifications
- Brand: Sargent
- Model: 194356-MD8646E
- Configuration: Rim, Right-hand Reverse (RHR)
- Finish: 32D
- Door Thickness: 1 3/4" minimum (44mm); up to 2 1/4" with specification
- Minimum Stile Width: 4 1/2" (114mm)
- Device Centerline: 41" from finished floor (38" for elementary schools/accessibility)
- Center Case Dimensions: 8 3/8" W x 2 5/8" H (213mm x 67mm)
- Pushbar Projection: 3" neutral (76mm), 2 1/8" depressed (54mm)
- Top Bolt: Stainless steel
- Maximum Door Height: 96"
- Standards: Exceeds ANSI/BHMA Grade 1
- Dogging: Hex key standard; cylinder dogging available
- Strike: 650 Top & 606 Bottom (panic and fire-rated)
