Description

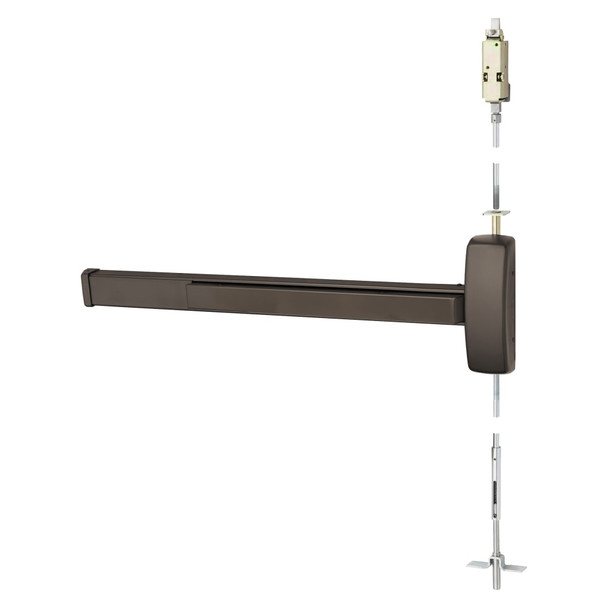

The Sargent 80 Series exit device is a heavy-duty panic bar solution designed for commercial buildings, hospitals, schools, and facilities requiring Grade 1 security and durability. It solves the critical need for reliable emergency egress while maintaining long-term performance in high-traffic environments with minimal maintenance.
This rim-mounted device fits metal doors 1.75 inches minimum thickness and accommodates door widths from 24 to 48 inches with modular rail options. It exceeds ANSI/BHMA Grade 1 standards and supports optional features including delayed egress, alarms, photoluminescent coatings, and electric latch retraction. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for configuration assistance and expert guidance on your specific application.
Specifications
- Brand: Sargent
- Series: 80 Series
- Model: 1956-AD8613F RHR 10BE
- Configuration: Rim Exit Device, Right-Hand Reverse
- Door Thickness: 1.75 inches minimum (44mm)
- Minimum Stile Width: 4.5 inches (114mm)
- Rail Options: E (24-32 inches), F (33-36 inches), J (37-42 inches), G (43-48 inches)
- Maximum Door Height: 96 inches
- Device Centerline Height: 41 inches standard, 38 inches for accessible installations
- Center Case Dimensions: 8.375 inches x 2.625 inches (213mm x 67mm)
- Pushbar Projection: 3 inches neutral, 2.125 inches depressed
- Top Bolt: Stainless steel
- Standard Dogging: Hex key (non-fire rated)
- Strikes Included: 650 Top, 606 Bottom (panic and fire rated)
- Standards: Exceeds ANSI/BHMA Grade 1
