Description

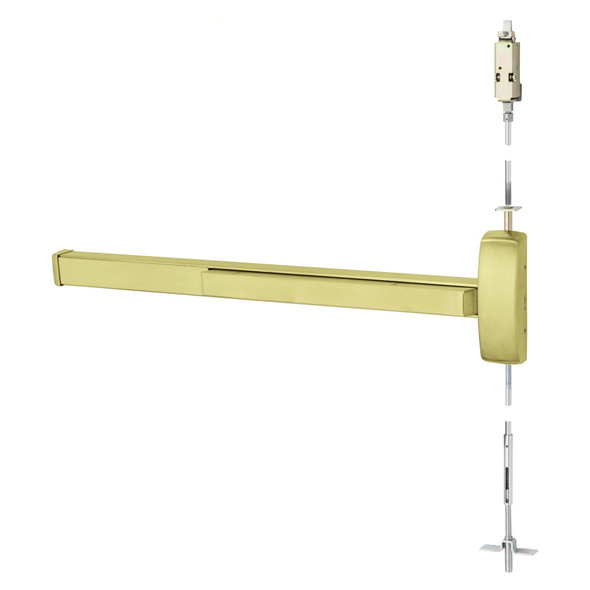

The Sargent 1956-MD8640F is a Grade 1 exit device engineered for metal doors requiring heavy-duty security and reliability. Built with modular construction and minimal moving parts, it delivers maintenance-free operation and exceeds ANSI/BHMA standards. Ideal for facilities where durability and code compliance are non-negotiable.
This rim-mounted device suits metal doors 1.75 inches minimum thickness and works with standard fasteners and strikes. E.D. Locks stocks this model and offers expert compatibility guidance—contact our team at sales@edlocks.com or 1-877-207-6067 to confirm your door width, height, and any electric options like alarm or delayed egress before ordering.
Specifications
- Model: 1956-MD8640F
- Orientation: Right-Hand Reverse (RHR)
- Grade: ANSI/BHMA Grade 1
- Configuration: Rim Mount
- Door Compatibility: Metal doors, 1.75 inches (44mm) minimum thickness; up to 2.25 inches with specification
- Minimum Stile Width: 4.5 inches (114mm)
- Device Centerline: 41 inches (1041mm) from floor, standard applications; 38 inches (965mm) for elementary schools with accessibility control
- Center Case Dimensions: 8.375 inches (213mm) x 2.625 inches (67mm)
- Pushbar Projection: 3 inches (76mm) neutral; 2.125 inches (54mm) depressed
- Top Bolt: Stainless steel
- Maximum Door Height: 96 inches
- Dogging: Hex key standard (non-fire-rated); cylinder dogging available
- Strikes: 650 top strike and 606 bottom strike included (panic and fire-rated)
- Electric Options: Alarm, beacon, photoluminescent coating, illuminated touchpad, latchbolt monitor, lever monitoring, request-to-exit signal, remote latch retraction, delayed egress, electric dogging, and self-contained delayed egress available
