Description

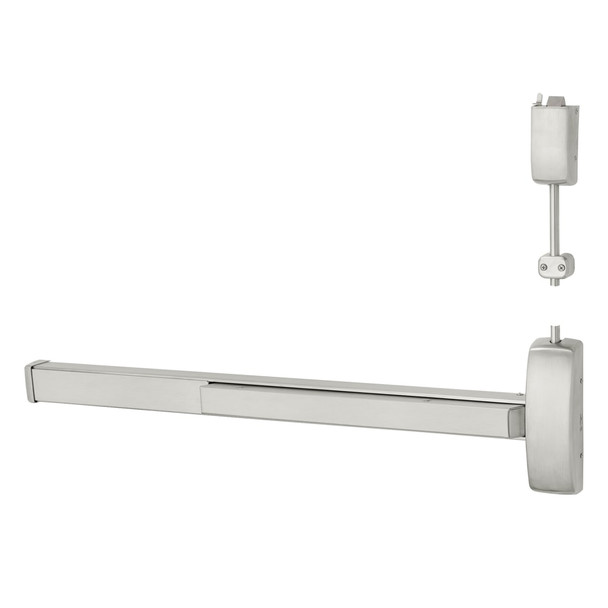

The Sargent 1956 exit device is a heavy-duty panic bar designed for wood and metal doors in high-traffic commercial facilities. Built to ANSI/BHMA Grade 1 specifications, it features modular construction with minimal moving parts, ensuring durability and low maintenance while meeting Life Safety Code requirements for secure emergency egress.
This right-hand reverse (RHR) model fits standard 1-3/4" thick doors with 24-32" width using the E Rail configuration. Sargent offers optional delayed egress, alarmed, and electric latch retraction features for specialized applications. As an authorized dealer, E.D. Locks provides expert product matching and installation guidance at sales@edlocks.com or 1-877-207-6067 to ensure correct specification for your building.
Specifications
- Model: 1956-NB8713G
- Handing: RHR (Right-Hand Reverse)
- Finish: 32D
- Compatible Door Thickness: 1-3/4" (44mm)
- Compatible Door Width (E Rail): 24-32" (61-81cm)
- Minimum Stile: 4-1/2" (114mm) with trim; 3-1/2" (89mm) without trim
- Standards: ANSI/BHMA Grade 1
- Door Types: Wood or metal
