Description

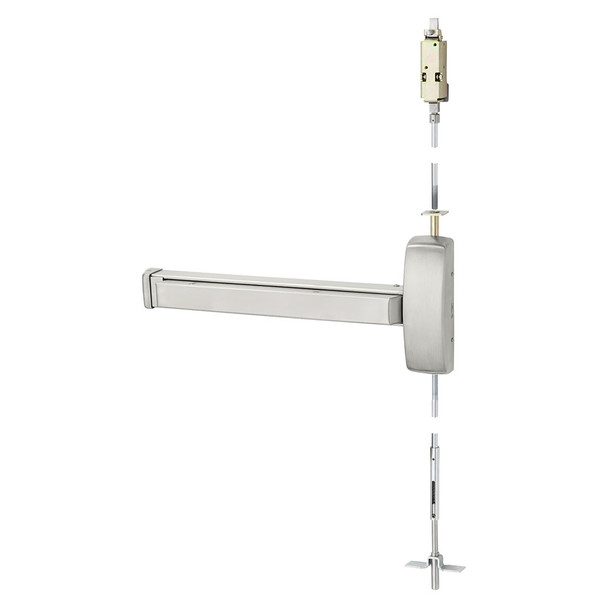

The Sargent 80 Series exit device is a heavy-duty panic hardware solution for metal doors in commercial and institutional buildings. Designed for facilities requiring Grade 1 security and reliability, it features modular construction with minimal moving parts, reducing maintenance while delivering durable egress control that meets ANSI/BHMA standards and exceeds cycle and strength requirements.
This rim-mounted, right-hand-reverse device installs on 1.75-inch minimum thickness metal doors and is compatible with standard 650 top and 606 bottom strikes. Available in multiple rail sizes (E, F, J, G) for door widths 24 to 48 inches, plus optional electric features including alarm, beacon, photoluminescent coating, and delayed egress. Contact our authorized dealer experts at sales@edlocks.com or 1-877-207-6067 for sizing assistance and configuration guidance.
Specifications
- Series: 80 Series
- Configuration: Rim, Right-Hand-Reverse (RHR)
- Finish: 32D (Satin Stainless Steel)
- Door Thickness: 1.75 inches minimum (up to 2.25 inches with specification)
- Minimum Stile Width: 4.5 inches
- Device Centerline Height: 41 inches (38 inches for accessibility applications)
- Center Case Dimensions: 8.375 inches x 2.625 inches
- Pushbar Projection: 3 inches (neutral), 2.125 inches (depressed)
- Top Bolt: Stainless steel
- Strikes: 650 top, 606 bottom (panic and fire-rated compatible)
- Dogging: Hex key standard; cylinder dogging available (#41 cylinder supplied)
- Maximum Door Height: 96 inches
- Standards: Exceeds ANSI/BHMA Grade 1
- Fasteners: Machine screws supplied
- Rail Options: E (24-32 inches), F (33-36 inches), J (37-42 inches), G (43-48 inches)
- Electric Options: Alarm, Beacon, photoluminescent coating, illuminated touchpad, latchbolt monitor, lever monitoring, request-to-exit signal, remote latch retraction, delayed egress, electric dogging, self-contained delayed egress
