Description

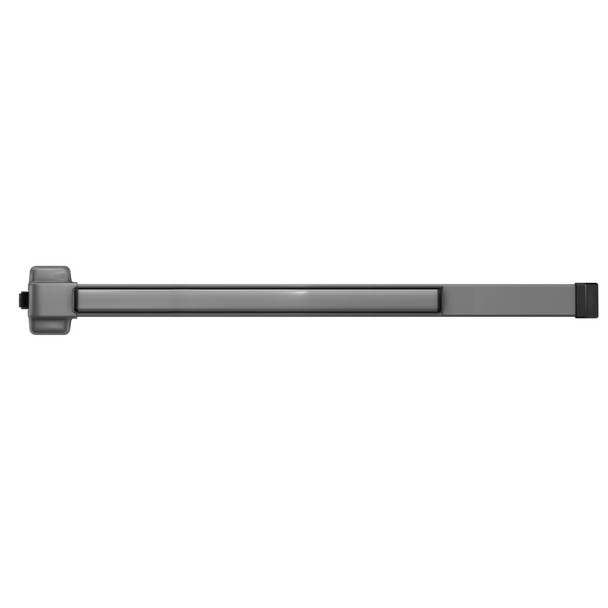

The Von Duprin 22K-F 4 689 is a 22-inch rim exit device engineered for single and double doors with or without mullions. UL-listed panic hardware meeting ANSI A156.3 Grade 1, it solves life-safety code compliance for commercial facilities, schools, hospitals, and any building requiring reliable emergency egress on hollow metal or wood doors.
Non-handed and ships ready for multiple functions (EO, DT, NL, TP, K, L), this device fits door stiles as narrow as 3 13/16 inches and installs at 39 13/16 inches from finished floor. Available in 3-foot and 4-foot lengths with optional electric monitoring, alarm, or mechanical upgrades. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for expert configuration, keying, and installation guidance.
Specifications
- Brand: Von Duprin
- Model: 22K-F 4 689
- Device Length: 3 feet (914 mm) or 4 feet (1219 mm)
- Centerline Height: 39 13/16 inches (1011 mm); 39 11/16 inches (1008 mm) with mullion
- Minimum Door Stile Width: 3 13/16 inches (97 mm)
- Center Case: 4 1/4 inches x 1 3/8 inches x 2 3/8 inches
- Mechanism Case: 2 inches x 3 3/4 inches
- Push Bar Projection: 3 3/4 inches (neutral); 3 inches (depressed)
- Latch Bolt: Deadlocking, 3/4 inch throw
- Dogging: Hex key standard; LD (less dogging) optional
- Standard Functions: EO, DT, NL, TP, K, L
- Electric Options: LX latchbolt monitor, RX pushpad monitor, RX2 double pushpad monitor, ALK alarm exit kit, CON Allegion Connect
- Mechanical Options: GBX glass bead kit, AX accessible device
- Fasteners: Includes 1 3/4 inch and 2 1/4 inch SNB for wood and metal doors
- Strike: 299 (Dull Black)
- Standards: UL listed, ANSI A156.3 2008 Grade 1
- Application: Single and double doors with or without mullion; hollow metal and wood doors with 161 cutouts
