Description

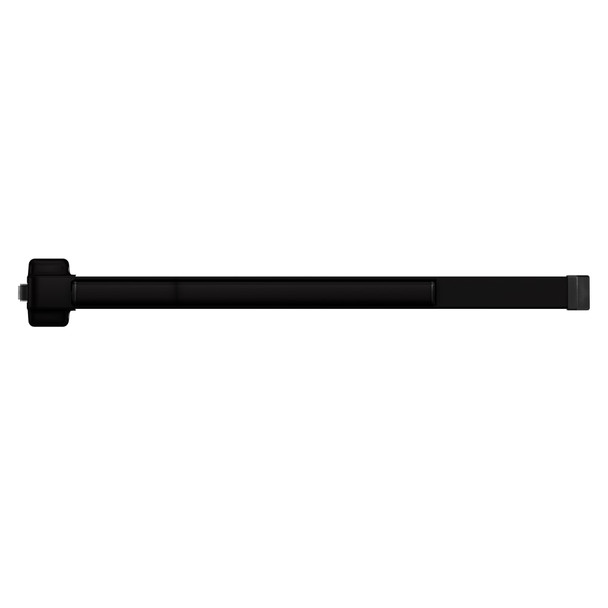

The Von Duprin 22K-F 4 695 is a 22-inch rim exit device engineered for single and double doors with or without mullions. UL listed for panic hardware and ANSI A156.3 Grade 1 certified, it solves life-safety code requirements for commercial facilities, schools, hospitals, and any building requiring reliable emergency egress hardware.
Available in 3-foot and 4-foot lengths, this non-handed device fits door stiles as narrow as 3 13/16 inches and ships ready for multiple functions including electrified options. E.D. Locks is an authorized Von Duprin dealer offering expert configuration assistance and free shipping on orders over $450. Contact our team at sales@edlocks.com or 1-877-207-6067 for keying, electrical wiring, or compatibility questions.
Specifications
- Device lengths: 3 feet (914 mm), 4 feet (1219 mm)
- Centerline height from finished floor: 39 13/16 inches (1011 mm), 39 11/16 inches (1008 mm) with mullion
- Center case dimensions: 4 1/4 inches x 1 3/8 inches x 2 3/8 inches
- Mechanism case dimensions: 2 inches x 3 3/4 inches
- Push bar projection: 3 3/4 inches neutral, 3 inches depressed
- Latch bolt: Deadlocking, 3/4 inch throw
- Minimum door stile width: 3 13/16 inches (97 mm)
- Fits hollow metal doors with 161-inch cutouts
- Functions: EO, DT, NL, TP, K, L
- Dogging: Hex key standard, less dogging option available
- Electric options: LX latchbolt monitor, RX pushpad monitor, RX2 double pushpad monitor, ALK alarm exit kit, Allegion Connect
- Mechanical options: Glass bead kit, accessible device
- Strike: 299 in dull black finish
- Certification: UL listed, ANSI A156.3 2008 Grade 1
- Non-handed design
