Description

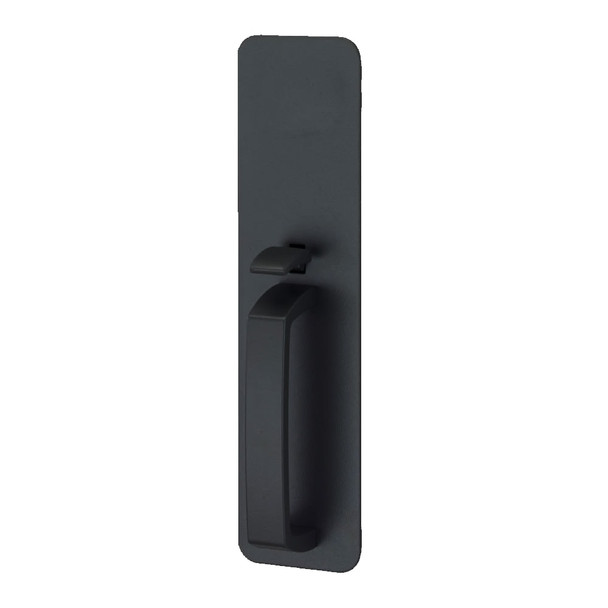

The Von Duprin 230TP-BE 622 is a rim exit device trim for single and double doors with mullion, designed for high-traffic commercial facilities requiring UL-listed panic hardware. Grade 1 ANSI A156.3 certified, it solves life-safety code compliance on hollow metal doors and fits stiles as narrow as 3 13/16 inches.
Compatible with 161-inch cutouts on stock hollow metal doors, available in 3-foot and 4-foot lengths, and ships ready for multiple functions (EO, DT, NL, TP, K, L). As an authorized Von Duprin dealer, E.D. Locks offers expert configuration guidance and support at sales@edlocks.com or 1-877-207-6067 to ensure correct specification for your building code and door type.
Specifications
- Brand: Von Duprin
- Model: 230TP-BE 622
- Type: Rim Exit Device Trim
- Grade: ANSI A156.3 2008 Grade 1
- Compatible Cutout: 161 inches
- Minimum Stile Width: 3 13/16 inches (97 mm)
- Device Lengths: 3 feet (914 mm), 4 feet (1219 mm)
- Centerline Height: 39 13/16 inches (1011 mm), 39 11/16 inches (1008 mm) with mullion
- Center Case Dimensions: 4 1/4 inches (108 mm) x 1 3/8 inches (41 mm) x 2 3/8 inches (60 mm)
- Mechanism Case Dimensions: 2 inches (51 mm) x 3 3/4 inches (95 mm)
- Push Bar Projection Neutral: 3 3/4 inches (95 mm)
- Push Bar Projection Depressed: 3 inches (76 mm)
- Latch Bolt: Deadlocking, 3/4 inch (19 mm) throw
- Fasteners: Includes 1 3/4 inch (44 mm) and 2 1/4 inch (57 mm) SNB for wood and metal doors
- Device Functions: EO, DT, NL, TP, K, L
- Electric Options: LX latchbolt monitor switch, RX pushpad monitor switch, RX2 double pushpad monitor switch, ALK alarm exit kit, CON Allegion Connect
- Mechanical Options: GBK glass bead kit, AX accessible device
- Dogging: Hex key dogging standard, LD less dogging option
- Strike: 299 Dull Black Von Duprin
- Non-Handed: Yes
