Description

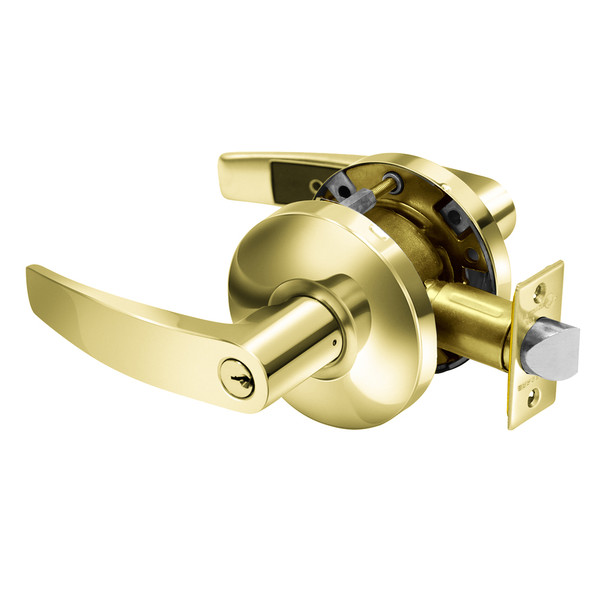

The Sargent 6500 Series is a standard duty key-in-lever cylindrical lock engineered for interior and exterior doors in commercial and institutional buildings. It exceeds ANSI A156.2 Series 4000 Grade 2 requirements and accommodates door thicknesses from 1-3/8" to 1-3/4", making it ideal for offices, schools, hospitals, and multi-tenant properties where reliable keyed access control is essential.
This lock features a universal hand design, brass latch with 1/2" throw, and a 6-pin LA keyway cylinder. Standard 2-3/4" backset; 2-3/8" optional. Available finishes include polished brass, satin stainless, and others. Compatible with ANSI A115.2 (161) door prep and 600 curved lip strikes. Contact E.D. Locks at sales@edlocks.com or 1-877-207-6067 for keying options, strike selection, and expert installation guidance from an authorized Sargent dealer.
Specifications
- Brand: Sargent
- Model: 28-65G37 KB 3
- Door Thickness: 1-3/8" to 1-3/4" (35mm to 44mm)
- Backset: 2-3/4" (70mm) standard; 2-3/8" (60mm) optional
- Cylinder: Brass, 6-pin, LA keyway
- Latch: Brass, 1/2" (13mm) throw
- Hand: Universal
- Front: Wrought brass and stainless steel, 2-1/4" x 1-1/8"
- Keys: Two nickel silver
- Standard Strikes: 600 curved lip (brass or stainless steel)
- Available Strikes: 808 ANSI curved lip, 505 full lip
- Finishes: 3, 4, 10, 10B, 26, 26D
- Standard: ANSI A156.2 Series 4000 Grade 2
- Door Prep: ANSI A115.2 (161) Modified
- Minimum Stile: 4-1/2" (114mm)
