Description
The Sargent 6500 series is a standard-duty key-in-lever cylindrical lock engineered for interior and passage doors. Built to ANSI A156.2 Series 4000 Grade 2 standards, it fits door thicknesses from 1-3/8" to 1-3/4" and offers reliable keyed access control for offices, commercial spaces, and institutional buildings.
This lock features a 2-3/4" standard backset, universal hand configuration, and works with ANSI A115.2 prepared bored holes. Strike options include 600 curved lip, 808 ANSI curved lip, or 505 full lip. Verify your door prep and backset requirement before ordering. Contact E.D. Locks at sales@edlocks.com or 1-877-207-6067 for expert guidance on compatibility and installation.
Specifications
- Brand: Sargent

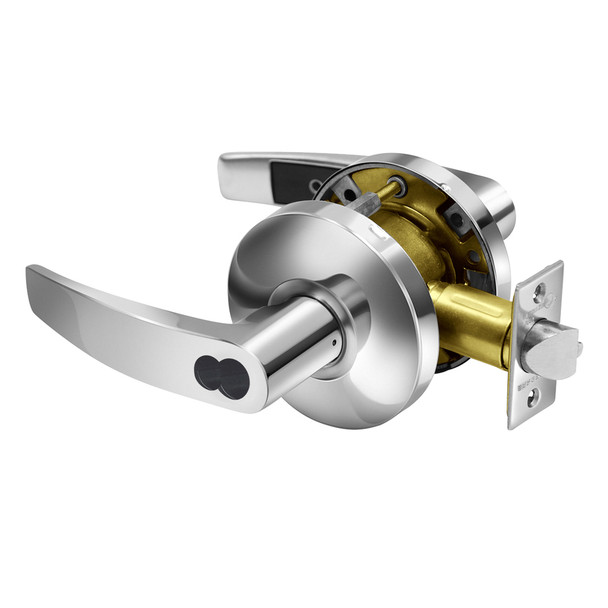

- Model: 2860-65G37 KB 26
- Lock Type: Key-in-Lever Cylindrical
- Door Thickness: 1-3/8" to 1-3/4" (35mm to 44mm)
- Backset: 2-3/4" (70mm) standard; 2-3/8" (60mm) optional
- Finish: Stainless Steel (26)
- Cylinder: 6-pin brass, LA keyway standard
- Latch: 1/2" brass throw
- Keys: Two nickel silver
- Hand: Universal
- Front: Wrought brass and stainless steel, 2-1/4" x 1-1/8"
- Strike Options: 600 curved lip, 808 ANSI curved lip, 505 full lip
- Door Prep: ANSI A115.2 (161) modified
- Minimum Stile: 4-1/2"
- Standard: ANSI A156.2 Series 4000 Grade 2
