Description

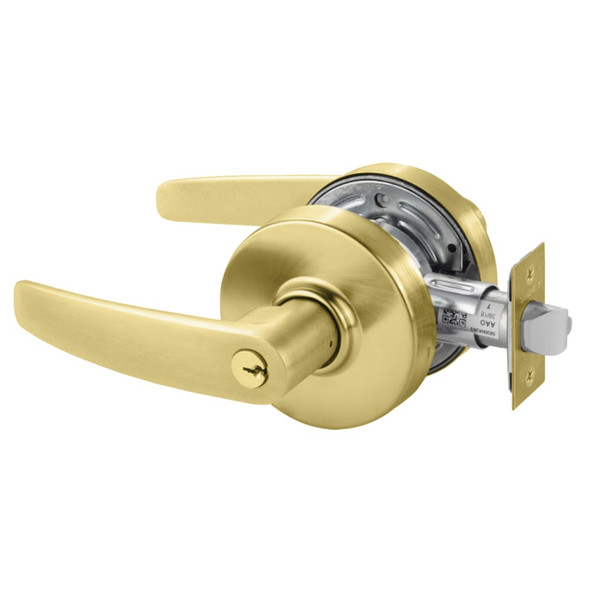

The Sargent 28-7G05 LB is a key-in-lever lock built for standard-duty commercial use in public buildings, medical offices, hotels, and government facilities. It exceeds ANSI/BHMA A156.2 durability standards and accommodates 1-3/4" standard or 1-3/8" thick doors with 2-3/4" or 2-3/8" backset options. Non-handed and handed lever designs offer flexibility for any door orientation.
This cylindrical lock features a brass 6-pin LA keyway cylinder, wrought brass or stainless steel front and strike, and includes two nickel silver keys. Master keying and grand master keying are available. For proper sizing and keying assistance, contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 to ensure the right configuration for your application.
Specifications
- Door Thickness: 1-3/4" (44mm) standard; 1-3/8" (35mm) optional
- Backset: 2-3/4" (70mm) standard; 2-3/8" (60mm) optional
- Front Plate: 2-1/4" x 1-1/8" (57mm x 29mm) standard; 2-1/4" x 1" (57mm x 25mm) optional
- Latch Throw: 1/2" (13mm)
- Housing: Steel, zinc dichromate finish
- Front and Strike: Wrought brass or stainless steel
- Strikes: 2-3/4" curved lip (standard), 4-7/8" curved lip, or 2-1/4" full lip
- Cylinder: Brass, 6-pin, LA keyway
- Keys: Two nickel silver
- Lever Designs: B, L, P (non-handed); G, Y Coastal Series (handed)
- Finishes: 03, 04, 09, 10, 10B, 10BE, 10BL, 14, 15, 20D, 26, 26D
- Door Prep: ANSI A115.2 standard; 160 prep optional
- Standards: Exceeds ANSI/BHMA A156.2
